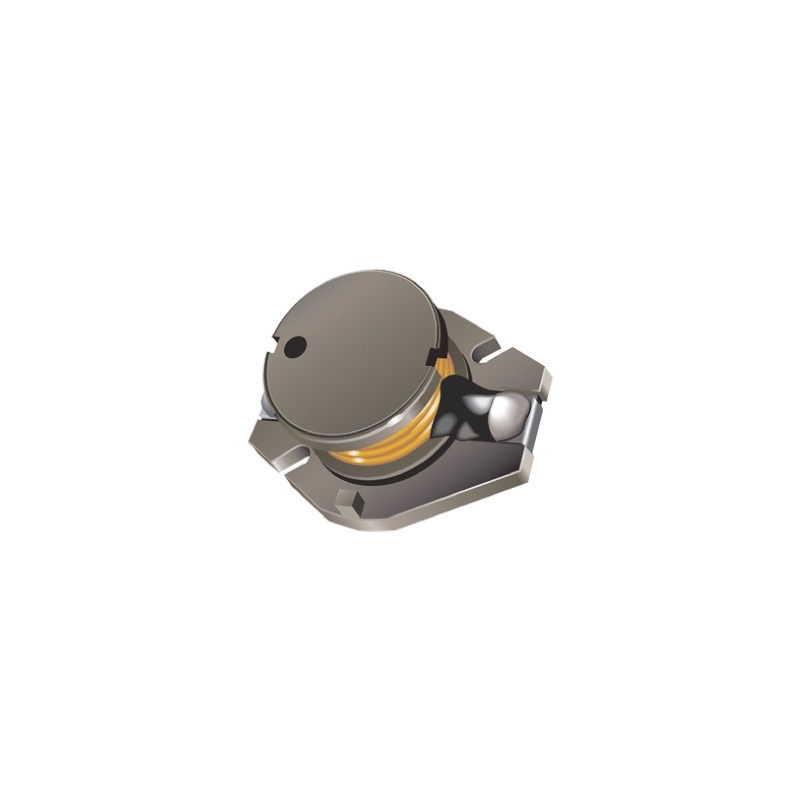

    50 pcs - SDR1005-3R3ML Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 3.3 μH ±20% Wire-Wound 5
    • 50 pcs - SDR1005-3R3ML Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 3.3 μH ±20% Wire-Wound 5

    50 pcs - SDR1005-3R3ML Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 3.3 μH ±20% Wire-Wound 5

    50(electronicparts)7271678
    BOURNS
    50 pcs - SDR1005-3R3ML Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 3.3 μH ±20% Wire-Wound 5.0A Idc Q:45
    £38.79
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SDR1005 Series Wire Wound ChokesAvailable in E6 seriesLow profile of only 5.0mmInductance as low as 0.68μHRoHS compliantApplications in input/output of DC/DC Converters, Power Supplies
    Product Details
    BOURNS
    50(electronicparts)7271678
    SDR1005-3R3ML
    10 Items

    Data sheet

    Manufacturer
    BOURNS
    Tolerance
    ±20%
    Dimensions
    12.7 x 10 x 5mm
    Height
    5mm
    Length
    12.7mm
    Depth
    10mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    SDR1005
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    5.0A
    Inductance
    3.3 μH
    Package/Case
    1005
    Maximum DC Resistance
    15mΩ
    Core Material
    Ferrite DR
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    54MHz
    Minimum Quality Factor
    45
