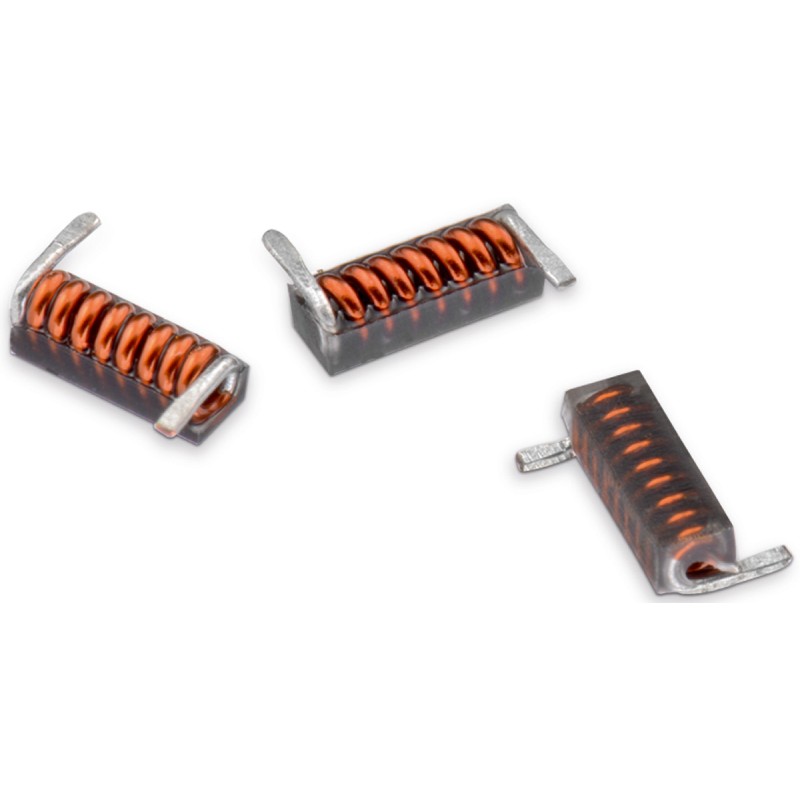

    50 pcs - 744911071 Wurth, WE-CAIR, 1340 Wire-wound SMD Inductor 7.15 nH ±5% Wire-Wound 1.6A Idc Q:100
    • 50 pcs - 744911071 Wurth, WE-CAIR, 1340 Wire-wound SMD Inductor 7.15 nH ±5% Wire-Wound 1.6A Idc Q:100

    50 pcs - 744911071 Wurth, WE-CAIR, 1340 Wire-wound SMD Inductor 7.15 nH ±5% Wire-Wound 1.6A Idc Q:100

    50(electronicparts)8631122
    50 pcs - 744911071 Wurth, WE-CAIR, 1340 Wire-wound SMD Inductor 7.15 nH ±5% Wire-Wound 1.6A Idc Q:100
    £41.04
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-CAIR Air Coil InductorsWE-CAIR Air coil SMD RF Inductors, with a high self-resonant frequency, a very high quality factor (>,100), currents of up to 3.5A and Inductance values from 22nH up to 120nH. The WE-CAIR Air coil inductors are pick and place compatible and have tinned connector pins making them easy to solder. The WE-CAIR series are designed especially for high current RF applications such as Broad band filtering and RF-Decoupling.Wurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    50(electronicparts)8631122
    744911071
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±5%
    Dimensions
    4.04 x 3.2 x 1.37mm
    Height
    1.37mm
    Length
    4.04mm
    Depth
    3.2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-CAIR
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    1.6A
    Inductance
    7.15 nH
    Package/Case
    1340
    Maximum DC Resistance
    10mΩ
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    6GHz
    Minimum Quality Factor
    100
