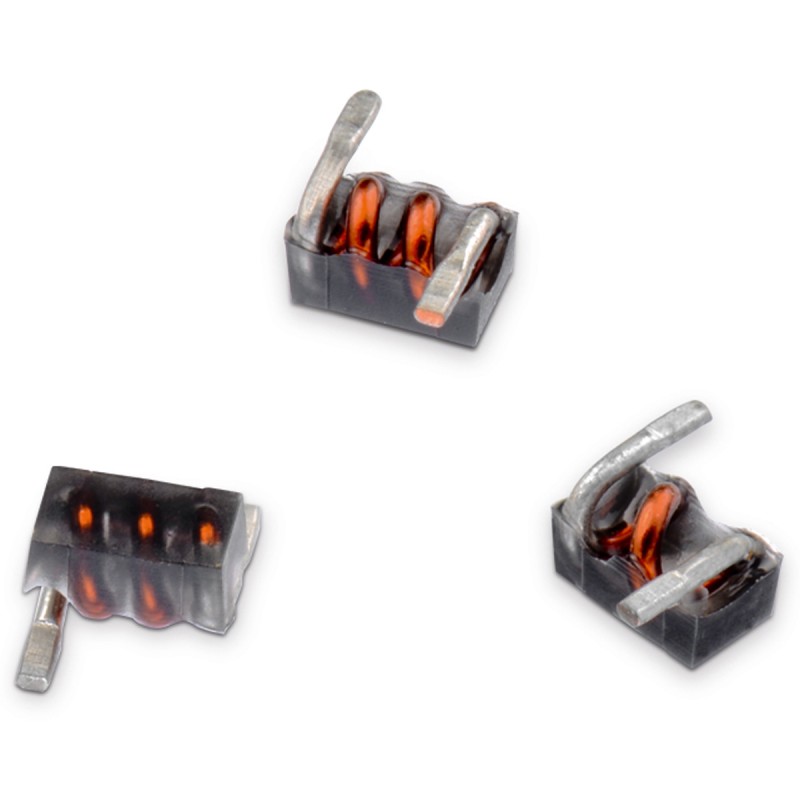

    50 pcs - 744910025 Wurth, WE-CAIR, 1322 Wire-wound SMD Inductor 2.55 nH ±10% Wire-Wound 1.6A Idc Q:100
    • 50 pcs - 744910025 Wurth, WE-CAIR, 1322 Wire-wound SMD Inductor 2.55 nH ±10% Wire-Wound 1.6A Idc Q:100

    50 pcs - 744910025 Wurth, WE-CAIR, 1322 Wire-wound SMD Inductor 2.55 nH ±10% Wire-Wound 1.6A Idc Q:100

    50(electronicparts)8631097
    50 pcs - 744910025 Wurth, WE-CAIR, 1322 Wire-wound SMD Inductor 2.55 nH ±10% Wire-Wound 1.6A Idc Q:100
    £41.04
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-CAIR Air Coil InductorsWE-CAIR Air coil SMD RF Inductors, with a high self-resonant frequency, a very high quality factor (>,100), currents of up to 3.5A and Inductance values from 22nH up to 120nH. The WE-CAIR Air coil inductors are pick and place compatible and have tinned connector pins making them easy to solder. The WE-CAIR series are designed especially for high current RF applications such as Broad band filtering and RF-Decoupling.Wurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    50(electronicparts)8631097
    744910025
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±10%
    Dimensions
    2.21 x 3.2 x 1.37mm
    Height
    1.37mm
    Length
    2.21mm
    Depth
    3.2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-CAIR
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Maximum DC Current
    1.6A
    Inductance
    2.55 nH
    Package/Case
    1322
    Maximum DC Resistance
    5mΩ
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    8.2GHz
    Minimum Quality Factor
    100
