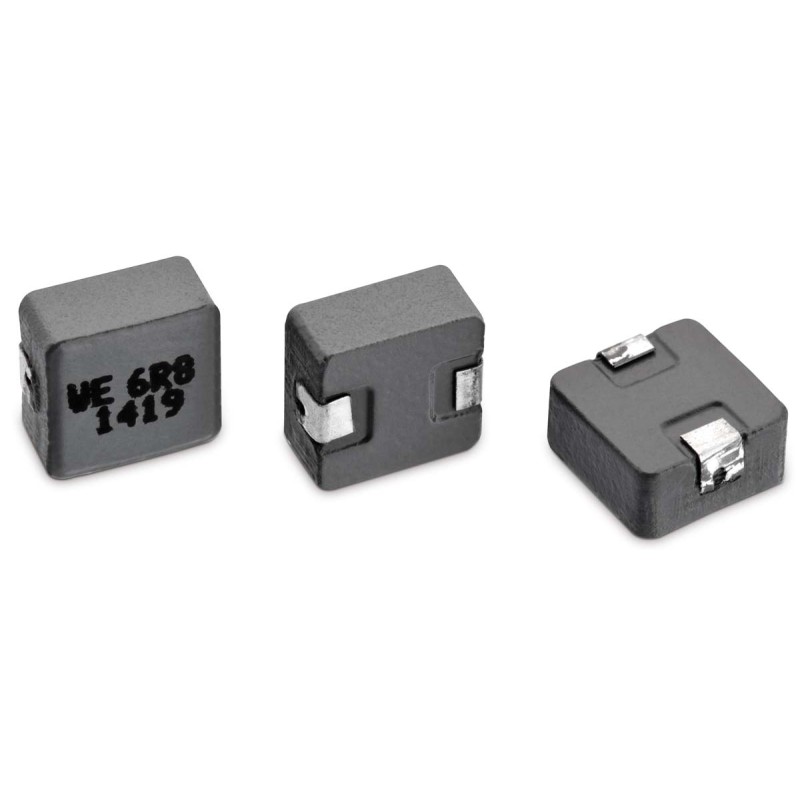

10 pcs - 74437336056 Wurth, WE-LHMI, 5030 Shielded Wire-wound SMD Inductor 5.6 μH ±20% Wire-Wound 3.3A Idc
    • 10 pcs - 74437336056 Wurth, WE-LHMI, 5030 Shielded Wire-wound SMD Inductor 5.6 μH ±20% Wire-Wound 3.3A Idc

    10 pcs - 74437336056 Wurth, WE-LHMI, 5030 Shielded Wire-wound SMD Inductor 5.6 μH ±20% Wire-Wound 3.3A Idc

    10(electronicparts)8631012
    10 pcs - 74437336056 Wurth, WE-LHMI, 5030 Shielded Wire-wound SMD Inductor 5.6 μH ±20% Wire-Wound 3.3A Idc
    £54.46
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-LHMI Series Magnetically Shielded Wirewound ChokesWE-LHMI Series Magnetically shielded SMD power inductors with a high current capability. The compact WE-LHMI Series SMD power inductors are designed to handle high transient current spikes, with no acoustic noise and no leakage field.Applications for the WE-LHMI Series include: DC-DC converters for high current power supplies, DC-DC converters for field programmable gate arrays (FPGA), POL converters, Portable power (for example, PDA, digital camera), Mainboards / graphic cards, Battery powered devicesdevicesWurth Non Standard SMT Inductors (Chokes)
    Product Details
    10(electronicparts)8631012
    74437336056
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    5.2 x 5.2 x 2.8mm
    Height
    2.8mm
    Length
    5.2mm
    Depth
    5.2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-LHMI
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    3.3A
    Inductance
    5.6 μH
    Package/Case
    5030
    Maximum DC Resistance
    63mΩ
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    22MHz
