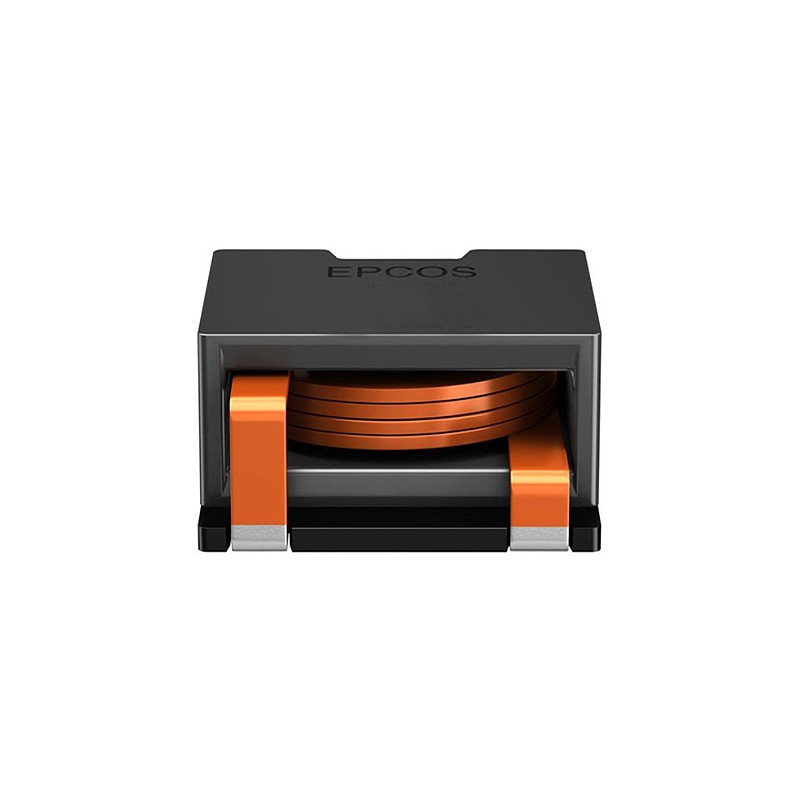

    10 pcs - B82559A0303A019 EPCOS, B82559, B82559 Shielded Wire-wound SMD Inductor with a Ferrite Core, 30 μH ±10% Ferrite Core 10.
    • 10 pcs - B82559A0303A019 EPCOS, B82559, B82559 Shielded Wire-wound SMD Inductor with a Ferrite Core, 30 μH ±10% Ferrite Core 10.

    10 pcs - B82559A0303A019 EPCOS, B82559, B82559 Shielded Wire-wound SMD Inductor with a Ferrite Core, 30 μH ±10% Ferrite Core 10.

    10(electronicparts)1359626
    EPCOS
    10 pcs - B82559A0303A019 EPCOS, B82559, B82559 Shielded Wire-wound SMD Inductor with a Ferrite Core, 30 μH ±10% Ferrite Core 10.1A Idc
    £53.94
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    B82559A Series Magnetically Shielded Wire Wound ChokesTDK helically wound Eru Chokes are magnetically shielded high temperature ferrite core. These chokes are self - leaded construction and underbody termination. Featuring low DC resistance and a high rated current, These wirewound surface mount chokes are easily customised. AEC -Q200 qualified. Rated inductance 1.0 - 30 μH.Saturation current 10.1 A to 43 A.ApplicationsDC-DC ConvertorsPOL ConvertorsVRM ModulesSolar ConvertorsApprovalsAEC -Q200 qualifiedThe EPCOS magnetically shielded wire wound chokes are magnetically shielded high temperature ferrite core. These chokes are self - leaded construction and underbody termination. Featuring low DC resistance and a high rated current, These wirewound surface mount chokes are easily customised.Operating Temperature: -40°C to +150°CEpcos Non Standard SMT Inductors (Chokes)
    Product Details
    EPCOS
    10(electronicparts)1359626
    B82559A0303A019
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Tolerance
    ±10%
    Dimensions
    20.5 x 19.9 x 10.85mm
    Height
    10.85mm
    Length
    20.5mm
    Depth
    19.9mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    B82559
    Maximum Operating Temperature
    +150°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    10.1A
    Inductance
    30 μH
    Package/Case
    B82559
    Automotive Standard
    AEC-Q200
    Maximum DC Resistance
    18.65mΩ
    Core Material
    Ferrite
    Inductor Construction
    Ferrite Core
    Maximum Self Resonant Frequency
    2MHz
