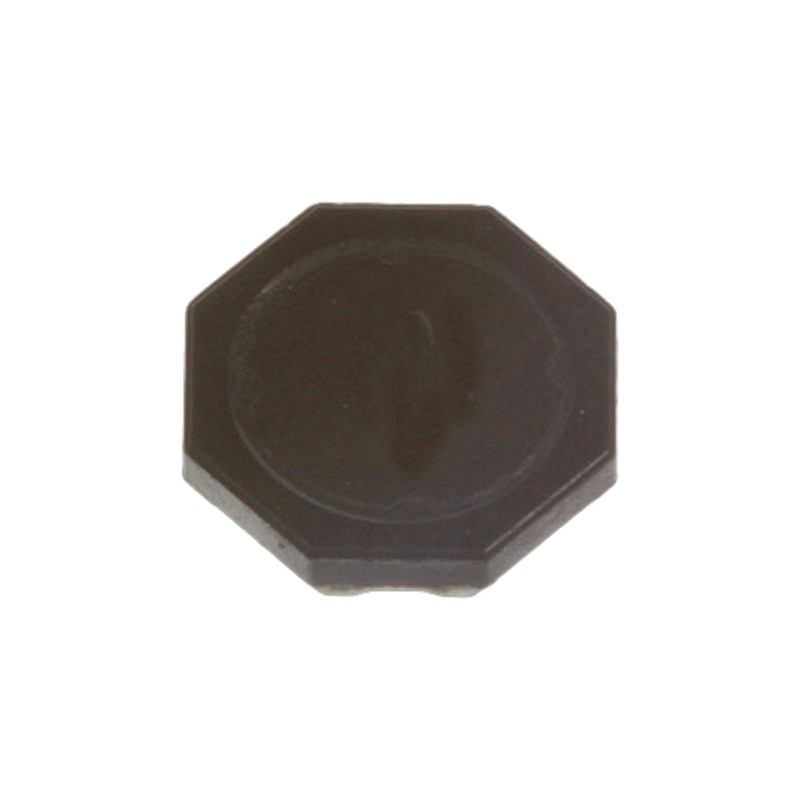

10 pcs - 7440690068 Wurth, WE-TPC, 8015 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.75A Idc
    • 10 pcs - 7440690068 Wurth, WE-TPC, 8015 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.75A Idc

    10 pcs - 7440690068 Wurth, WE-TPC, 8015 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.75A Idc

    10(electronicparts)8008166
    10 pcs - 7440690068 Wurth, WE-TPC, 8015 Shielded Wire-wound SMD Inductor with a Ferrite Core, 6.8 μH ±20% Wire-Wound 1.75A Idc
    £53.05
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-TPC Series 8mm Square Magnetically Shielded Wire Wound ChokesWE-TPC Series is extremely flat power inductor with high current capabilityMagnetically shielded which results in a low leakage fieldOperating temperature: –40 to +125°CApplications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays), DC/DC converter, Embedded PC, Mobile data gathering, telemetricWurth Non Standard SMT Inductors (Chokes)
    Product Details
    10(electronicparts)8008166
    7440690068
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    8 x 8 x 1.35mm
    Height
    8mm
    Length
    8mm
    Depth
    1.35mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-TPC
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    1.75A
    Inductance
    6.8 μH
    Package/Case
    8015
    Maximum DC Resistance
    110mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    15MHz
