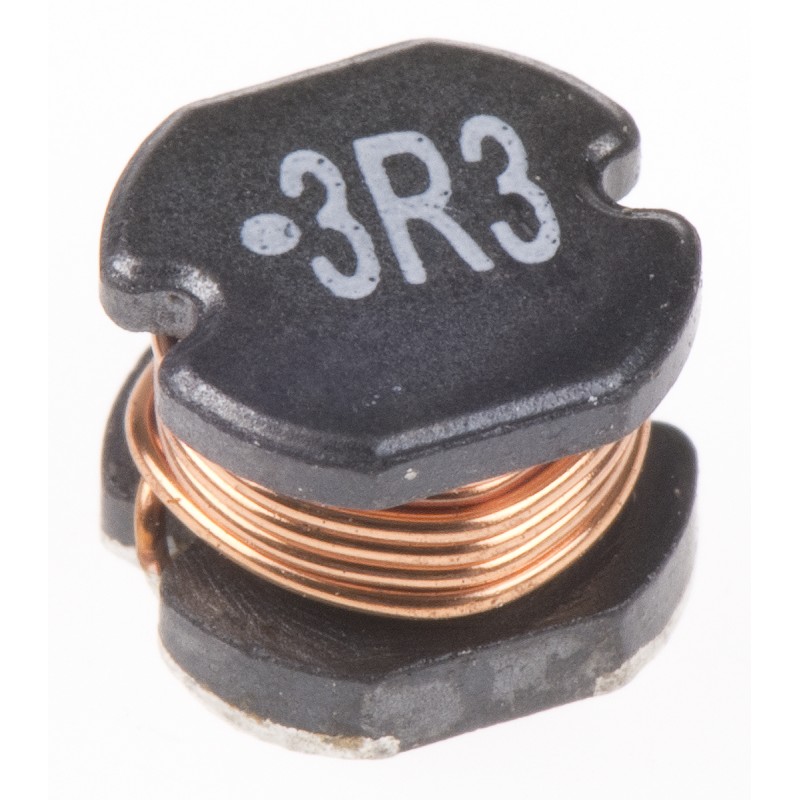

10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc
    • 10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc
    • 10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc
    • 10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc

    10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc

    10(electronicparts)7981748
    10 pcs - 744774033 Wurth, WE-PD2, 5848 Unshielded Wire-wound SMD Inductor 3.3 μH ±20% 4A Idc
    £52.43
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-PD2 Series Wire Wound ChokesWE-PD2 Series Open frame SMD Power Inductors with a current capability of up to 14 Amps. Recommended for reflow soldering, the WE-PD2 Series inductors are suitable for use in the following applications: Switching regulators with low operating voltage (computer, laptop, mobile phones and pagers), Integrated DC/DC-converter, Perfectly suitable for switching regulators with extremely high efficiencyWurth Non Standard SMT Inductors (Chokes)
    Product Details
    10(electronicparts)7981748
    744774033
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    5.8 x 5.2 x 4.5mm
    Height
    4.5mm
    Length
    5.8mm
    Depth
    5.2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-PD2
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    4A
    Inductance
    3.3 μH
    Package/Case
    5848
    Maximum DC Resistance
    60mΩ
    Maximum Self Resonant Frequency
    43MHz
    Moulded
    Yes
