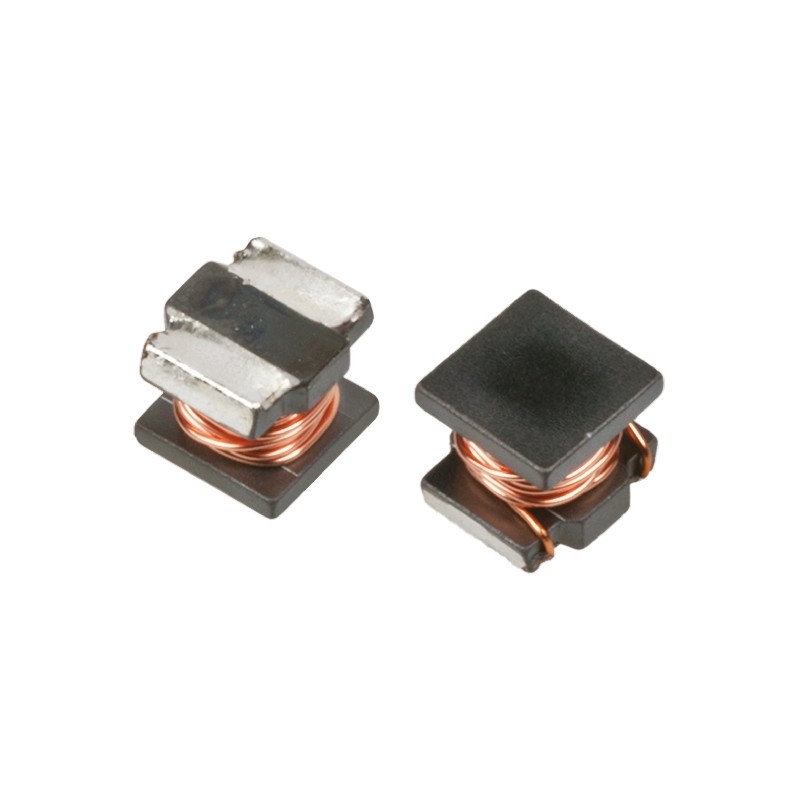

10 pcs - LQH55DN472M03L Murata, LQH55DN_03, 2220 (5750M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH ±20% Wir
    • 10 pcs - LQH55DN472M03L Murata, LQH55DN_03, 2220 (5750M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH ±20% Wir

    10 pcs - LQH55DN472M03L Murata, LQH55DN_03, 2220 (5750M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH ±20% Wir

    10(electronicparts)7255327
    MURATA
    10 pcs - LQH55DN472M03L Murata, LQH55DN_03, 2220 (5750M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 mH ±20% Wire-Wound 70mA Idc
    £46.85
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Murata 2220 LQH55D Series Wire Wound ChokesLQH55D series wirewound inductors for choke applications using high performance thick wire wound technology.Low direct current resistance, large current capacity and large inductanceFor DC-DC converters and DC power supply circuitsSMT 2220 Inductors (Chokes)
    Product Details
    MURATA
    10(electronicparts)7255327
    LQH55DN472M03L
    10 Items

    Data sheet

    Manufacturer
    MURATA
    Tolerance
    ±20%
    Dimensions
    5.7 x 5 x 4.7mm
    Height
    4.7mm
    Length
    5.7mm
    Depth
    5mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    LQH55DN_03
    Maximum Operating Temperature
    +80°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    70mA
    Inductance
    4.7 mH
    Package/Case
    2220 (5750M)
    Maximum DC Resistance
    61.04Ω
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    800kHz
