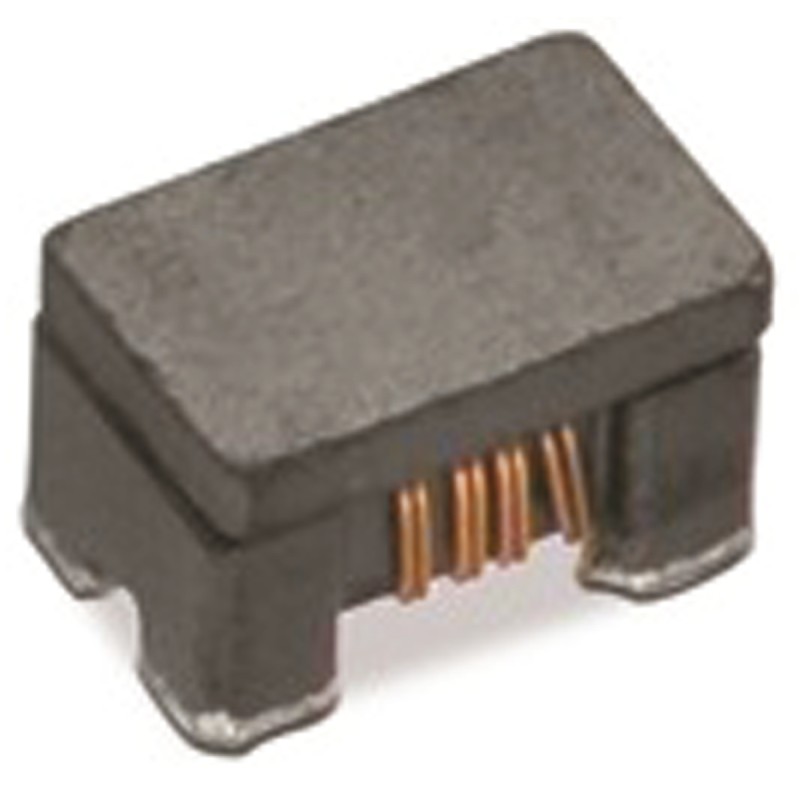

10 pcs - 7442335900 Wurth, WE-CNSW HF, 0504 Shielded Wire-wound SMD Inductor with a Ferrite Core, ±25% Dual 500mA Idc
    • 10 pcs - 7442335900 Wurth, WE-CNSW HF, 0504 Shielded Wire-wound SMD Inductor with a Ferrite Core, ±25% Dual 500mA Idc

    10 pcs - 7442335900 Wurth, WE-CNSW HF, 0504 Shielded Wire-wound SMD Inductor with a Ferrite Core, ±25% Dual 500mA Idc

    10(electronicparts)8164916
    Wurth, WE-CNSW HF, 0504 Shielded Wire-wound SMD Inductor with a Ferrite Core, ±25% Dual 500mA Idc
    £41.27
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Wurth WE-CNSW HF SMD Series Common Mode Line Filters (High Frequency)WE-CNSW HF series current compensated data line filters with a high common mode noise suppression at high frequencies and a small influence on high speed signals through its winding symmetry. Recommended for a reflow solder profile, applications for the WE-CNSW HF series include: USB 3.0, USB 2.0, HDMI, LVDS, High-Speed data lines, IEEE 1394 (Firewire)Wurth SMD Common Mode Chokes
    Product Details
    10(electronicparts)8164916
    7442335900
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±25%
    Dimensions
    1.2 x 1 x 0.9mm
    Height
    0.9mm
    Length
    1.2mm
    Depth
    1mm
    A-Supplier
    Allparts-UK/15/R-17
    Series
    WE-CNSW HF
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    500mA
    Package/Case
    504
    Maximum DC Resistance
    270mΩ
    Core Material
    Ferrite
    Inductor Construction
    Dual
    Maximum Self Resonant Frequency
    8GHz
