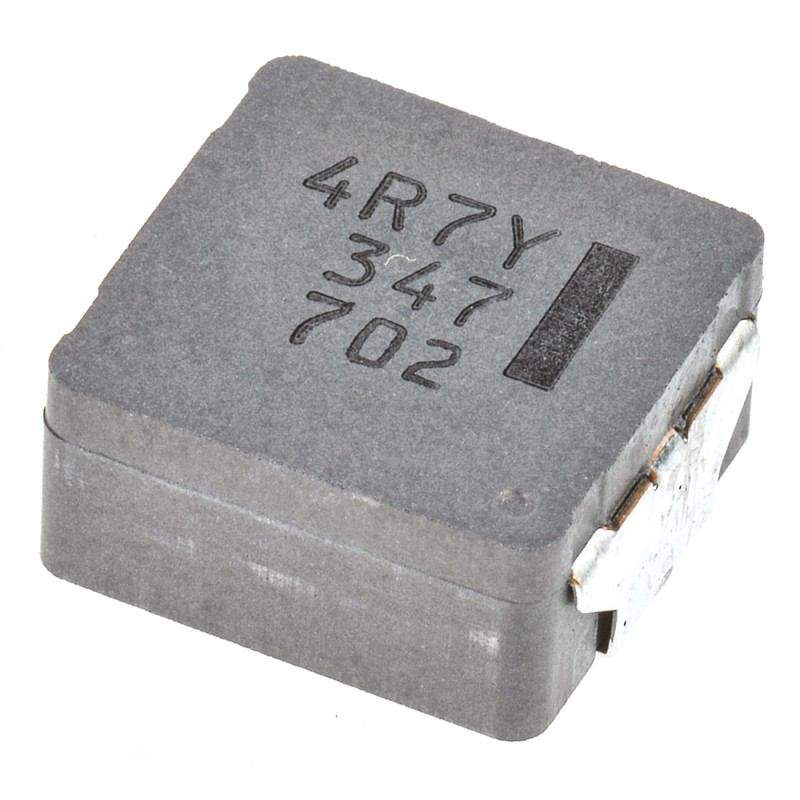

    10 pcs - ETQP5M4R7YFC Panasonic, ETQP5M, 1054 Shielded Wire-wound SMD Inductor with a Metal Composite Core, 4.7 μH ±20% Wire-Wound 13.1A Idc
    £40.65
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    ETQP5M Series Magnetically Shielded Wire Wound ChokesPanasonic ECQP5M choke coils provide a high reliability solution. Featuring heat resistance up to +150°C, the use of ferrous alloy magnetic material provides excellent inductance stability. New metal composite core technology creates low buzz noise, and the integral construction enables high vibration resistance.AEC-Q200 qualifiedHigh reliabilityHigh bias currentStableLow buzz noiseHigh efficiencyLow RDC of windingLow eddy-current loss of the coreApplicationsTypical applications include DC-DC converters and noise filters for drive circuitry that need high peak current and operating temperature handling capabilities. These choke coils are AEC-Q200 qualified and are suitable for automotive applications.Panasonic Non Standard SMT Inductors (Chokes)
    Product Details
    PANASONIC
    10(electronicparts)7709410
    ETQP5M4R7YFC
    10 Items

    Data sheet

    Manufacturer
    PANASONIC
    Tolerance
    ±20%
    Dimensions
    10.7 x 10 x 5.4mm
    Height
    5.4mm
    Length
    10.7mm
    Depth
    10mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    ETQP5M
    Maximum Operating Temperature
    +150°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    13.1A
    Inductance
    4.7 μH
    Package/Case
    1054
    Automotive Standard
    AEC-Q200
    Maximum DC Resistance
    11.3mΩ
    Core Material
    Metal Composite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    100kHz
    Moulded
    Yes
