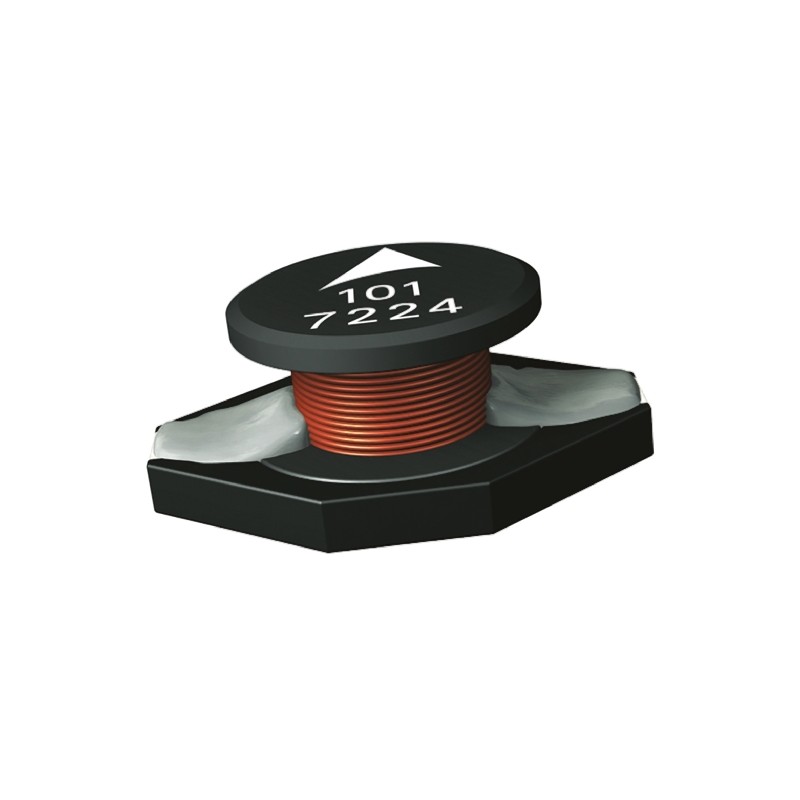

    10 pcs - B82476A1104M000 EPCOS, B82476A1, 1104 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 1.
    • 10 pcs - B82476A1104M000 EPCOS, B82476A1, 1104 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 1.

    10 pcs - B82476A1104M000 EPCOS, B82476A1, 1104 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 1.

    10(electronicparts)7730676P
    EPCOS
    10 pcs - B82476A1104M000 EPCOS, B82476A1, 1104 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 100 μH ±20% Wire-Wound 1.3A Idc
    £40.34
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    B82476A1 Series Wire Wound ChokesB82476A1 Series SMD power inductors with a ferrite core and enamel copper wire windings. The high current rated B82476A1 series have a low DC resistance and are Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D. Applications for the B82476A1 Series include: Filtering of supply voltages, Coupling, decoupling, DC/DC converters, Automotive electronics, Industrial electronics, Consumer electronicsRated inductance - 10μH to 470μHRated current - 3.90A to 0.5ATemperature range up to +150°CEpcos Non Standard SMT Inductors (Chokes)
    Product Details
    EPCOS
    10(electronicparts)7730676P
    B82476A1104M000
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Tolerance
    ±20%
    Dimensions
    12.95 x 9.4 x 5.08mm
    Height
    5.08mm
    Length
    12.95mm
    Depth
    9.4mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    B82476A1
    Maximum Operating Temperature
    +150°C
    Minimum Operating Temperature
    -55°C
    Shielded
    No
    Maximum DC Current
    1.3A
    Inductance
    100 μH
    Package/Case
    1104
    Maximum DC Resistance
    230mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
