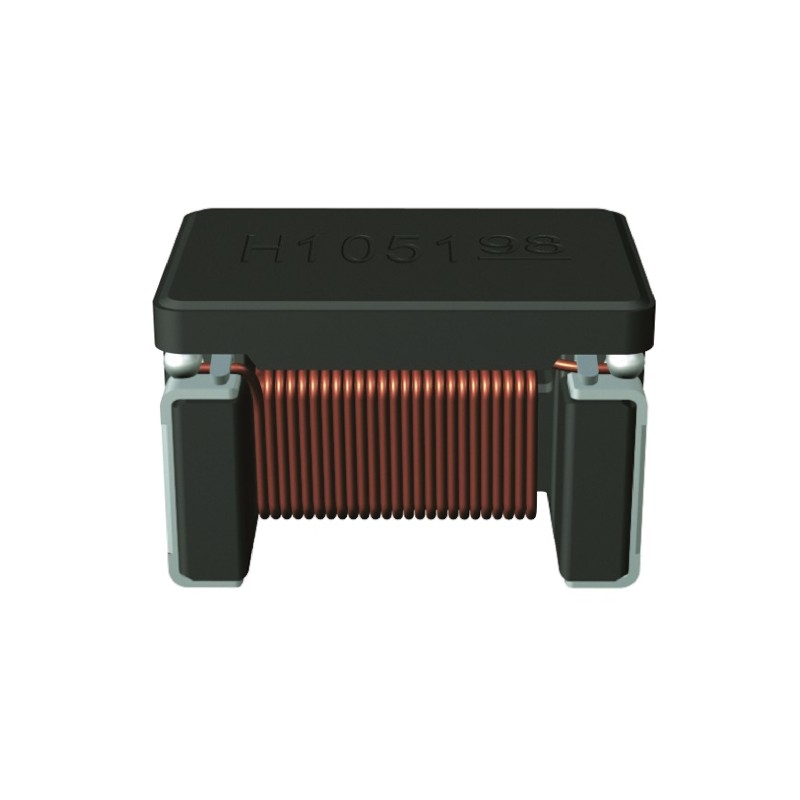

    10 pcs - B82787C0513H002 EPCOS, B82787, 1812 Unshielded SMD Common Mode Choke with a Ferrite Core, 51 μH -30% Wire-Wound 200mA I
    • 10 pcs - B82787C0513H002 EPCOS, B82787, 1812 Unshielded SMD Common Mode Choke with a Ferrite Core, 51 μH -30% Wire-Wound 200mA I

    10 pcs - B82787C0513H002 EPCOS, B82787, 1812 Unshielded SMD Common Mode Choke with a Ferrite Core, 51 μH -30% Wire-Wound 200mA I

    10(electronicparts)7740544
    EPCOS
    10 pcs - B82787C0513H002 EPCOS, B82787, 1812 Unshielded SMD Common Mode Choke with a Ferrite Core, 51 μH -30% Wire-Wound 200mA Idc
    £38.79
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Epcos 1812 ACT45B Series Common Mode ChokesFrom Epcos, these ACT45B series common mode chokes are for data and signal line applications. The ACT45B’s are current-compensated double choke chokes with a ferrite core and are designed for Automotive CAN bus system applications. They are suitable for lead-free re-flow soldering as referenced in JEDEC J-STD 020D.Features and Benefits:• Common-mode chokes, EIA 1812• Enamel copper wire winding• Winding welded to terminals• Qualified to AEC-Q200• RoHS-compatibleEpcos SMD Common Mode Chokes
    Product Details
    EPCOS
    10(electronicparts)7740544
    B82787C0513H002
    10 Items

    Data sheet

    Manufacturer
    EPCOS
    Tolerance
    -30 %, +50%
    Dimensions
    4.5 x 3.2 x 2.8mm
    Height
    2.8mm
    Length
    4.5mm
    Depth
    3.2mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    B82787
    Maximum Operating Temperature
    +150°C
    Minimum Operating Temperature
    -40°C
    Shielded
    No
    Maximum DC Current
    200mA
    Inductance
    51 μH
    Package/Case
    1812
    Automotive Standard
    AEC-Q200
    Maximum DC Resistance
    1Ω
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    10MHz
