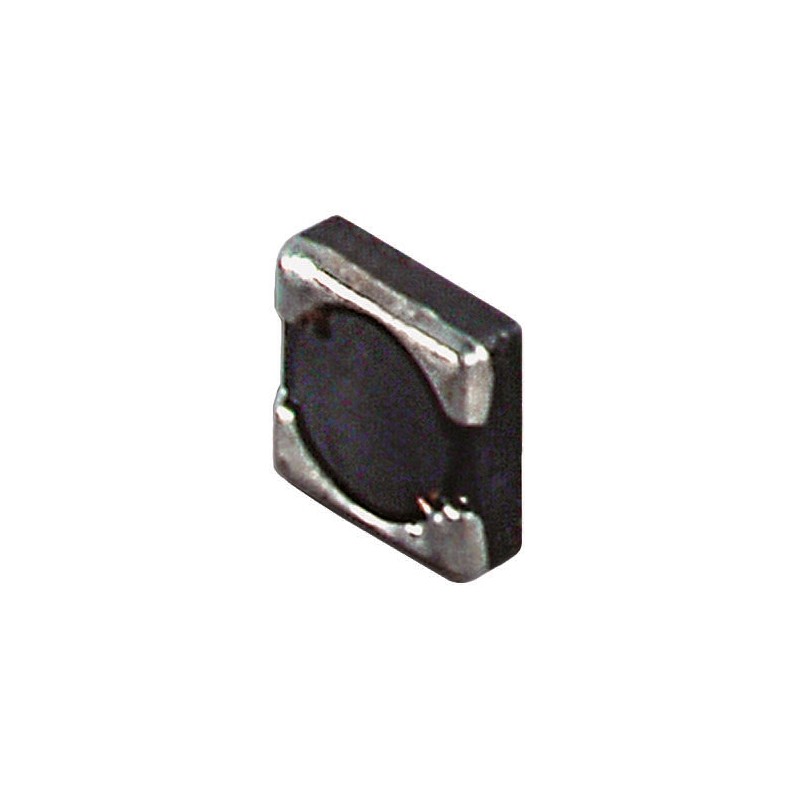

    10 pcs - 744043151 Wurth, WE-TPC, 4828 Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±30% Wire-Wound 420mA Idc
    • 10 pcs - 744043151 Wurth, WE-TPC, 4828 Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±30% Wire-Wound 420mA Idc

    10 pcs - 744043151 Wurth, WE-TPC, 4828 Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±30% Wire-Wound 420mA Idc

    10(electronicparts)8007964
    10 pcs - 744043151 Wurth, WE-TPC, 4828 Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±30% Wire-Wound 420mA Idc
    £37.86
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-TPC Series 4.8mm Square Magnetically Shielded Wire Wound ChokesWE-TPC Series is extremely flat power inductor with high current capabilityMagnetically shielded which results in a low leakage fieldOperating temperature: –40 to +125°CApplications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays), DC/DC converter, Embedded PC, Mobile data gathering, telemetricWurth Non Standard SMT Inductors (Chokes)
    Product Details
    Wurth Elektronik
    10(electronicparts)8007964
    744043151
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±30%
    Dimensions
    4.8 x 4.8 x 2.8mm
    Height
    4.8mm
    Length
    4.8mm
    Depth
    2.8mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-TPC
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    420mA
    Inductance
    150 μH
    Package/Case
    4828
    Maximum DC Resistance
    860mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    7MHz
