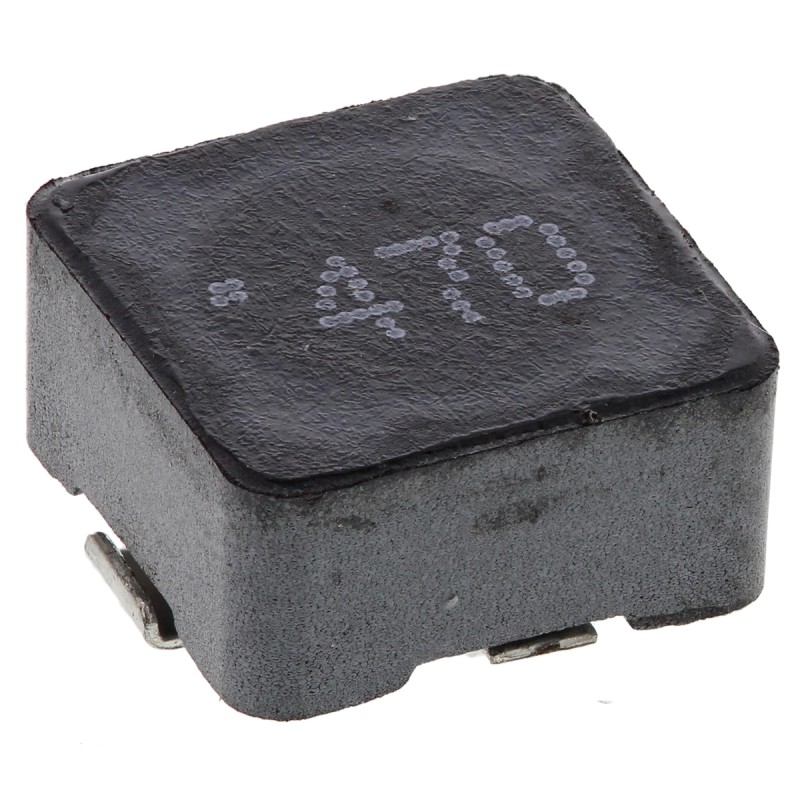

10 pcs - 744777147 Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.03A Idc
    • 10 pcs - 744777147 Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.03A Idc

    10 pcs - 744777147 Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.03A Idc

    10(electronicparts)3675102
    10 pcs - 744777147 Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 1.03A Idc
    £30.48
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    WE-PD Series Magnetically Shielded Wire Wound ChokesWurth WE-PD wirewound surface mount inductor is magnetically shielded resulting in a low leakage field. These power inductors have high storage capacity and high current loading. Recommended solder profile: Reflow. Operating temperature -40 to +125°C.ApplicationsSwitching regulators with low operating voltagesIntegrated DC-DC convertersSwitching regulators with high efficiency (>,86%)Graphic cardsNotePlastic base variant applications are particularly suited to high vibration or shock applications due to its one piece construction.Wurth Non Standard SMT Inductors (Chokes)
    Product Details
    10(electronicparts)3675102
    744777147
    10 Items

    Data sheet

    Manufacturer
    Wurth Elektronik
    Tolerance
    ±20%
    Dimensions
    7.3 x 7.3 x 4.5mm
    Height
    4.5mm
    Length
    7.3mm
    Depth
    7.3mm
    A-Supplier
    Allparts-UK/15/R-13
    Series
    WE-PD
    Maximum Operating Temperature
    +125°C
    Minimum Operating Temperature
    -40°C
    Shielded
    Yes
    Maximum DC Current
    1.03A
    Inductance
    47 μH
    Maximum DC Resistance
    260mΩ
    Core Material
    Ferrite
    Inductor Construction
    Wire-Wound
    Maximum Self Resonant Frequency
    10.3MHz
