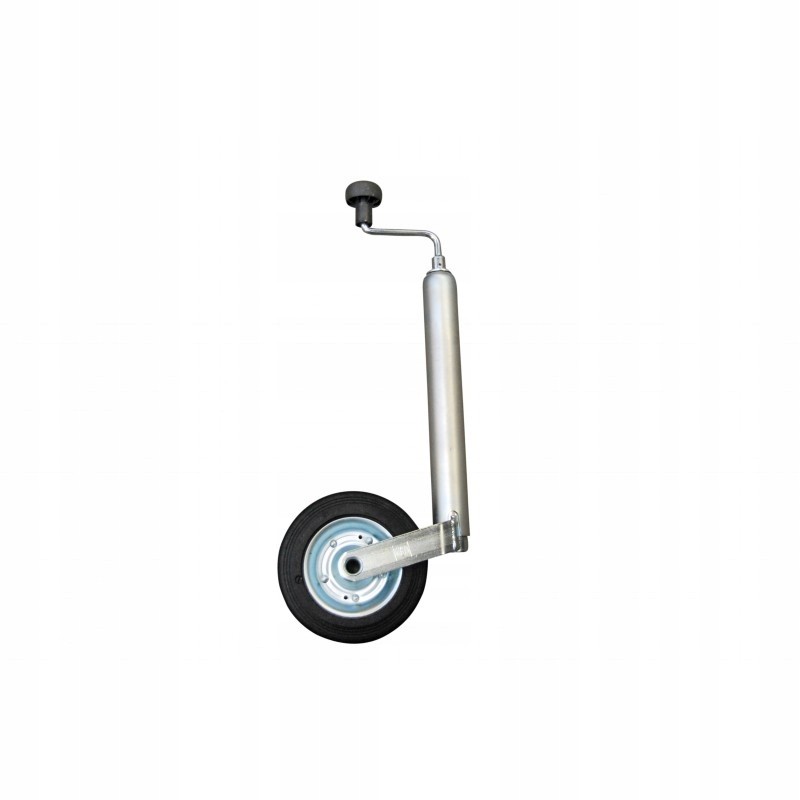

Support wheel fi 48, maneuvering wheel 150 kg

Support wheel Ø 48 mm - permissible load 150 kgBÜNTE support wheel Ø 48,

Solid rubber wheel Ø 48 mm, 200 x 50 mm

made of sheet steel, pipe length / height 370/505 mm,

Vertical load in standing / maneuvering mode 150 /90 kg,

Turning length 220 mm

Product description:

Thanks to the high-quality workmanship and the durable material of the Ø 48 support wheel and the solid solid rubber wheel (200 x 50), the BÜNTE support wheel is an essential spare part for the trailer.

WINTERHOFF reference numbers / AL-KO: ST 48-200VB / 6032/1860905

Features:

- Brand / type: original BÜNTE

- Tube: anti-corrosion protection by galvanizing

- Thrust bearing for easier starting

- Wheel: solid rubber tires

- Rim: steel sheet

- static load: 150 kg

- dynamic vertical load: 90 kg

Dimensions and weight:

- Pipe dimensions: Ø 48 mm, pipe length: 370 mm, turning length: 220 mm

- Wheel dimensions: Ø 200 mm width: 50 mm, radius: 100 mm, plastic bearing: 20 mm

- Fork dimensions: center length outer tube / center thru axle: 130 mm, outer width: 70 mm

- Measuring crank: Ø 12 mm, length 105 mm, height: 125-130 mm

- Net weight: 4.7 kg

- Color: zinc / black
