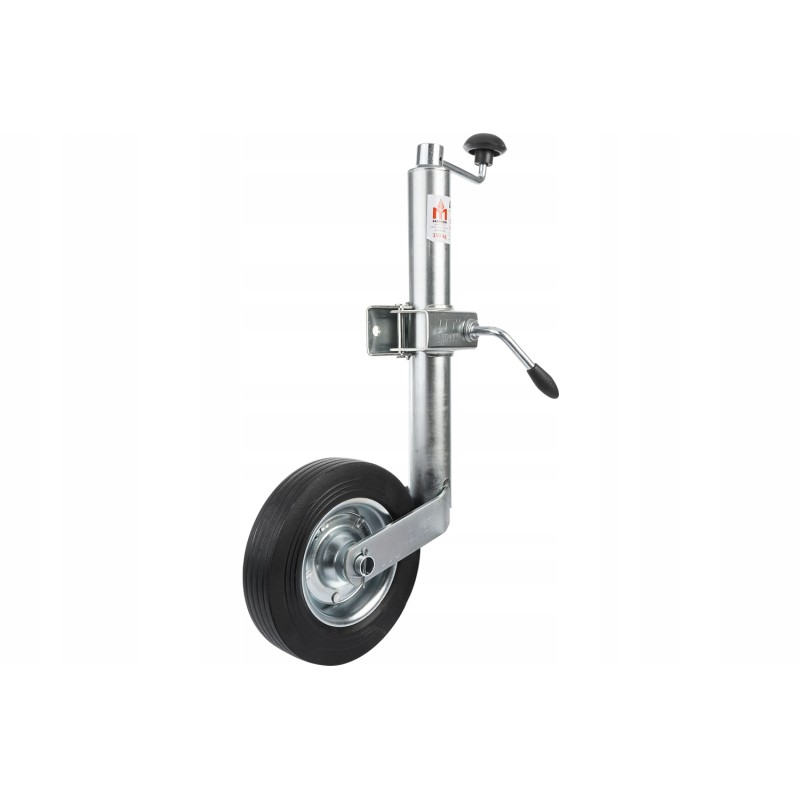

Support wheel for trailer, unitrailer maneuvering wheel 150kg, clamp

Support wheel with clamp for the LB 48 Unitrailer trailer. Original product of the brand: UNITRAILERSteel support wheel for the trailer in a set with a compatible Unitrailer trailer clamp. The diameter of the pipe is 48 mm.

Support wheel included with a clamp for the LB 48 Unitrailer trailer. The support wheel of the trailer is not a mandatory element, but it allows for much easier use. Thanks to it, you can easily remove the trailer from the hook, maneuver the trailer itself or put it back on the hook. The support wheel also ensures trailer stabilization, which limits the use of the original stabilizers. The clamp is an indispensable element of the support wheel in various types of trailers. It allows you to attach the support wheel and maneuver its positioning.

Solid steel support wheel with galvanization. Equipped with a release bearing for easy starting and a solid rubber tire. The crank is logged with the Unitrailer symbol. The Unitrailer support wheel clamp is made of durable steel. Equipped with a screw clamp, it allows for safe use of the trailer support wheel. Two screws with a diameter of 10 mm are enough to mount the clamp.

Technical data of the support wheel:

Static load: 150 kg

Dynamic load: 90 kg

Wheel diameter: 200 mm

Wheel width: 50 mm

Pipe diameter: 48 mm

Pipe length: 370 mm

Installing the wheel is very simple, it practically comes down to screwing a dedicated clamp with two screws and placing the wheel in it. The clamp will be suitable for all support wheels with a pipe diameter of 48 mm.
