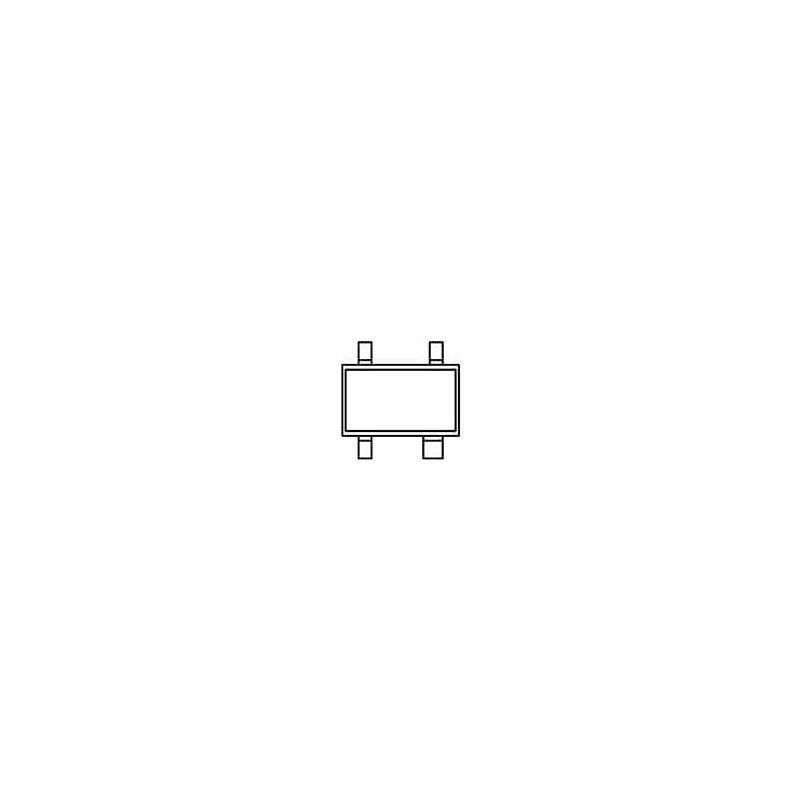

    1 pcs : XC6140C20CNR-G - Supervisory Circuits Voltage Monitoring IC for Rechargeable Batteries with CV Charging
    • 1 pcs : XC6140C20CNR-G - Supervisory Circuits Voltage Monitoring IC for Rechargeable Batteries with CV Charging

    1 pcs : XC6140C20CNR-G - Supervisory Circuits Voltage Monitoring IC for Rechargeable Batteries with CV Charging

    electronicparts-UK/M/865-XC6140C20CNR-G
    £9.73
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    XC6140 Battery Voltage Monitoring ICs Torex Semiconductor XC6140 Battery Voltage Monitoring ICs are optimal for CV rechargeable batteries and electric double-layer capacitors. These ICs output the release signal even in the voltage drop of the rechargeable batteries with high internal impedance due to inrush current. The output is released by setting the release voltage to 2.475V and increasing the hysteresis width. These XC6140 ICs make the subsequent system stop and stand by on the rear stage until the charging is completed when the battery voltage drops.
    Product Details
    Torex Semiconductor
    electronicparts-UK/M/865-XC6140C20CNR-G
    XC6140C20CNR-G
    10 Items

    Data sheet

    Manufacturer
    Torex Semiconductor
    Series
    XC6140
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Voltage Monitor
    Output Type
    CMOS
    Product Type
    Supervisory Circuits
    Package/Case
    SSOT-24
    Product Category
    Supervisory Circuits
    Manual Reset
    Manual Reset
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Max
    6 V
    Brand
    Torex Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    PMIC - Power Management ICs
    Watchdog Timers
    No Watchdog
    Threshold Voltage
    2 V
    Number of Inputs Monitored
    1 Input
    Battery Backup Switching
    Backup
    Reset Delay Time
    224 us
