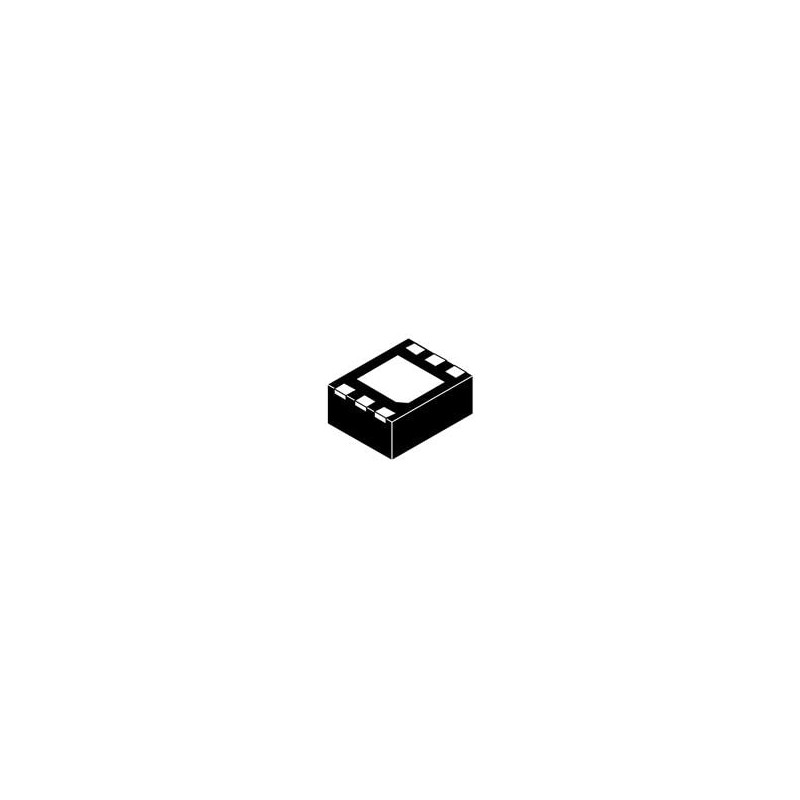

    1 pcs : MIC826YYMT-TR - Supervisory Circuits Voltage Supervisor Watchdog/Dual Output
    • 1 pcs : MIC826YYMT-TR - Supervisory Circuits Voltage Supervisor Watchdog/Dual Output

    1 pcs : MIC826YYMT-TR - Supervisory Circuits Voltage Supervisor Watchdog/Dual Output

    electronicparts-UK/M/998-MIC826YYMTTR
    £10.84
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    MIC826 Voltage Supervisors Microchip MIC826 Voltage Supervisors are a low-current, ultra-small, voltage supervisor with manual reset input, watchdog timer, and active-high and active-low push-pull outputs. The reset outputs are asserted and held when the supply voltage falls below the factory-programmed threshold voltage when the /MR pin is pulled low, or if the watchdog times out. Reset is asserted for the reset timeout delay after the supply voltage increases above the rising threshold voltage or when manual reset input is asserted high. The MIC826 consumes a quiescent current of only 3.8µA and is offered in a tiny, space-saving, 6-pin 1.6mm x 1.6mm Thin DFN package.
    Product Details
    MICROCHIP TECHNOLOGY
    electronicparts-UK/M/998-MIC826YYMTTR
    MIC826YYMT-TR
    10 Items

    Data sheet

    Manufacturer
    Microchip
    Series
    MIC826
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Voltage Supervisory
    Output Type
    Active High, Active Low, Push-Pull
    Product Type
    Supervisory Circuits
    Package/Case
    TDFN-6
    Product Category
    Supervisory Circuits
    Manual Reset
    Manual Reset
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    1 V
    Supply Voltage - Max
    5.5 V
    Brand
    Microchip Technology
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    PMIC - Power Management ICs
    Watchdog Timers
    Watchdog
    Unit Weight
    50 mg
    Part # Aliases
    MIC826YYMT TR
    Operating Supply Current
    3.8 A
    Threshold Voltage
    2.188 V
    Number of Inputs Monitored
    1 Input
    Battery Backup Switching
    No Backup
    Reset Delay Time
    200 ms
    Chip Enable Signals
    No Chip Enable
    Power Fail Detection
    Yes
