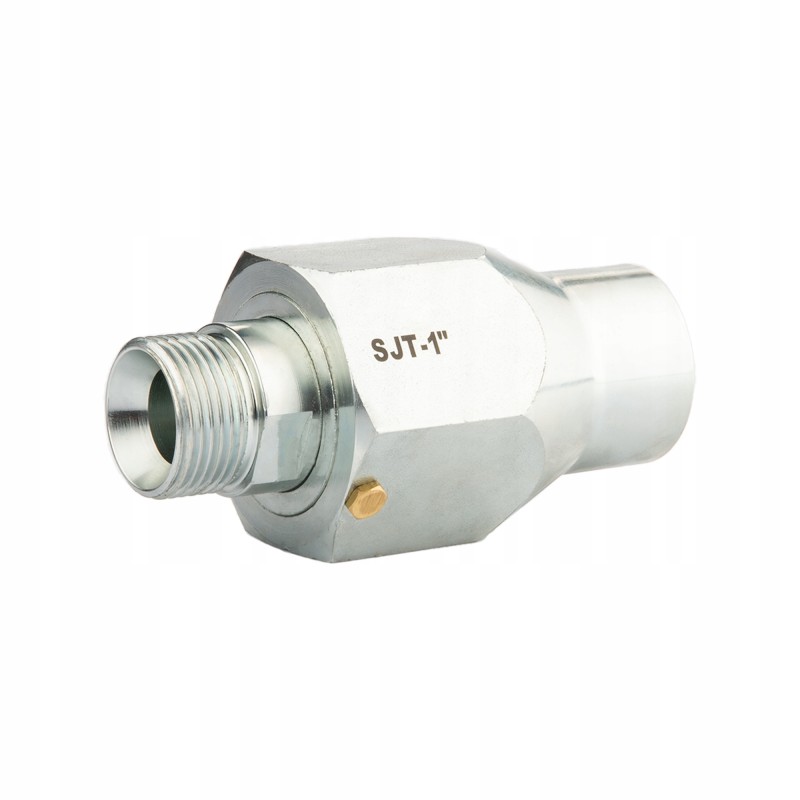

Straight linear swivel joint ggl 1 ohm

STRAIGHT SWIVEL HYDRAULIC CONNECTOR BSP THREAD 1' Production:

Original product of the Oleodinamica Marchesini brand, symbol: 1.60.06.015

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Swivel joints are mounted directly for hydraulic lines to protect them against damage caused by twisting or bending.

Two hydraulic elements mounted on both ends of the rotating union can independently twist and rotate freely while maintaining full tightness of the oil flow.

Helpful data:

BSP 1' thread diameter measured with a caliper :

Outer diameter [mm]: 33.0 - 33.2

Inner diameter [mm]: 30.3 - 30.8

Technical data:

Clamping cone angle: 60° (typical for European standard)

Maximum flow: 180L/min

Thread on one side: external inch BSP 1'

Thread on the other side: internal inch BSP 1'

Maximum working pressure: 300 bar

Maximum working pressure when turning: 100 bar

Fluid type: hydraulic oil

Material:

steel weldable, galvanized, corrosion resistant
