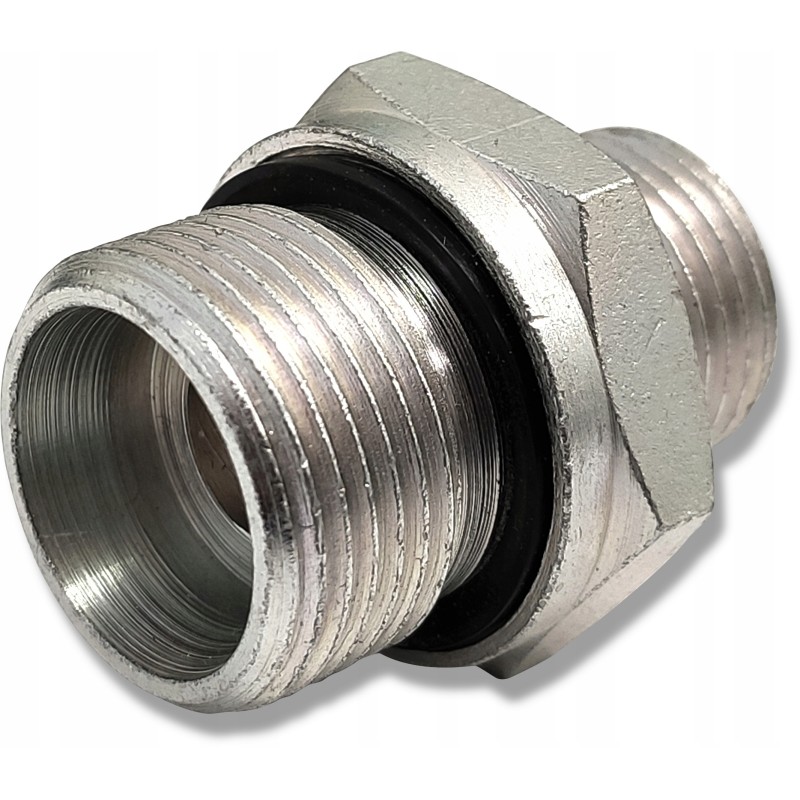

Straight hydraulic connection, nipple M22 M16

STRAIGHT HYDRAULIC CONNECTION NIPPLE M22 M16 SKRAW-MET CODE: [1564] Attention! Illustrative photos! The actual proportions of the offered connection may vary! You will find detailed information about the product in the specifications below! Application: The hydraulic connection is perfect for hydraulically powered machines and devices. It can be used in agriculture, horticulture, forestry and construction. The connection is designed to be screwed into the body of, among others: pumps, distributor, etc.

It is used to connect the main components in the hydraulic system with hydraulic conduits.

On the connection side there is an ED seal, which fully seals the system.

The other side is responsible for connecting the hydraulic conduit or elbow. Sealing occurs after tightening the joints on the self-sealing cone. This ensures complete sealing of the system. The connection is designed to be screwed into the body. It should not be used to connect two hydraulic lines. For this purpose, connectors available at other auctions are used.

Technical data: Clamping cone angle: 24° (typical for the Polish standard)

Nominal diameter of the passage: 12 mm

M1 thread on the body side (thread with seal): external metric 22x1.5

Thread M2 from the cable side: external metric 16x1.5

Connection version: light

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: hydraulic oil

Material:

weldable, galvanized steel, corrosion-resistant
