Straight hydraulic connection, nipple 3 4 22

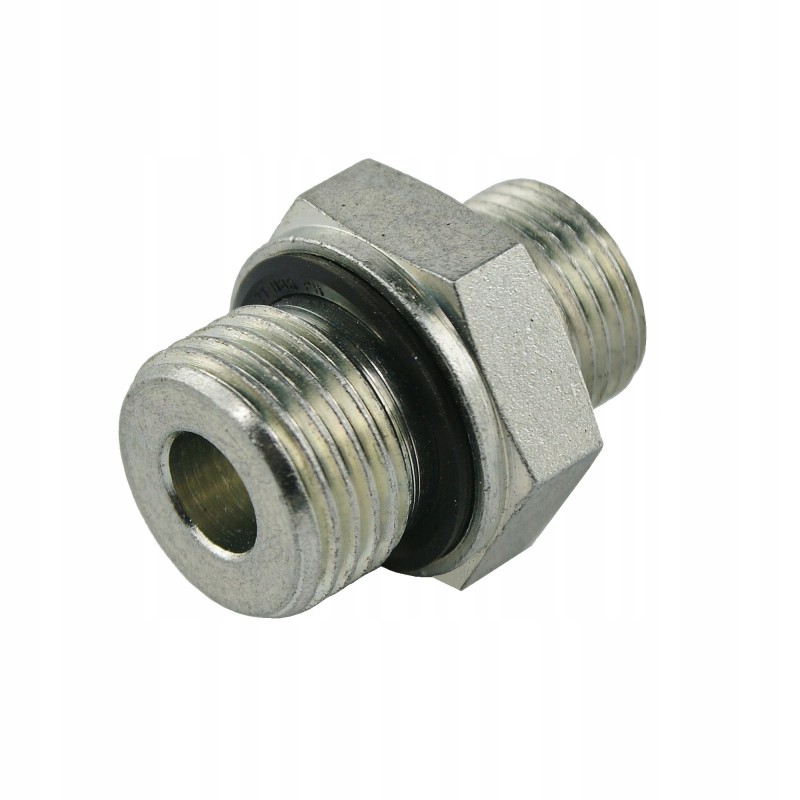

STRAIGHT HYDRAULIC CONNECTION BB 3/4' - 22 Production:

Original product of the Hydrolider brand, symbol: 1.60.13.006

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connection with rubber seal , screwed into the body of e.g. a pump, cylinder, distributor, etc. Connects the main components of the hydraulic system with hydraulic conduits.

The side intended for screwing into the body has an ED seal, no additional seals are required in this place.

The other side is intended for screwing the conduit , elbow or other fitting. Sealing occurs when screwing onto the self-sealing clamping cone. The use of additional seals is also not required here.

The connection is intended only for screwing into the body. Not suitable for connecting two wires. This is done using connectors that can be purchased at our other auctions.

Helpful data:

BSP 3/4' thread diameter measured with a caliper:

Outer diameter [mm]: 26.1 - 26.4

Inner diameter [mm]: 24 .1 - 24.5

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

Technical data:

Cone angle clamping: 24° (typical for the Polish standard)

Nominal passage diameter: 10 mm

Thread on the body side: external inch BSP 3/4'

Thread on the cable side: external metric 22x1.5

Connection version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable, galvanized steel, corrosion-resistant
