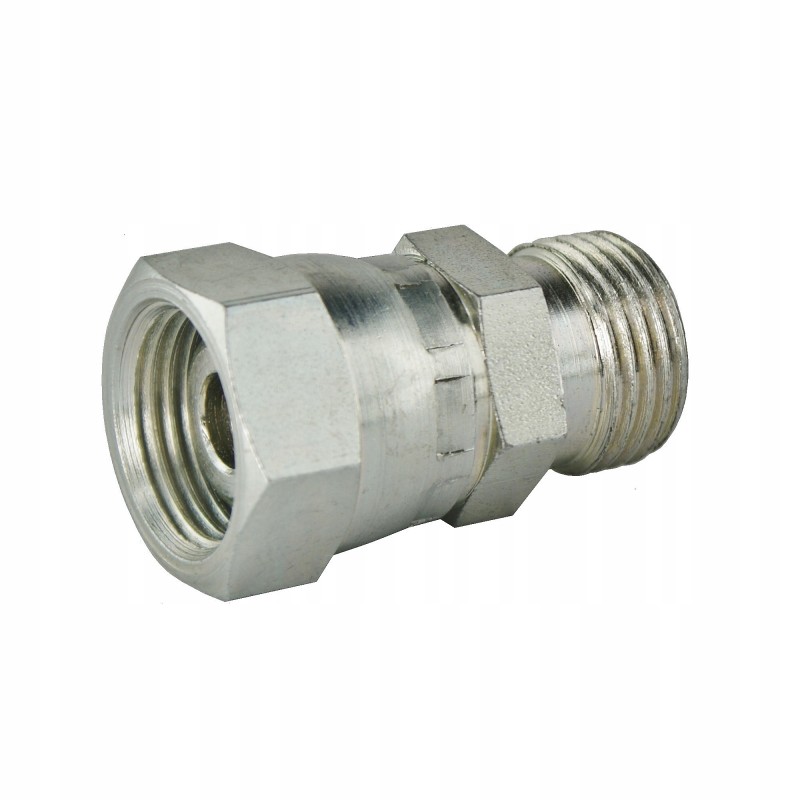

Straight hydraulic connector, reduction AB 3 8 to 18

INCH-METRIC HYDRAULIC CONNECTOR, STRAIGHT AB 3/8' - 18 Production:

Hydrolider, symbol: 1.60.01.109

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical clamping self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Nominal diameter of the passage: 8mm

Thread on one side: internal inch BSP 3/8'

Thread on the other side: external metric 18x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable, galvanized steel, corrosion-resistant
