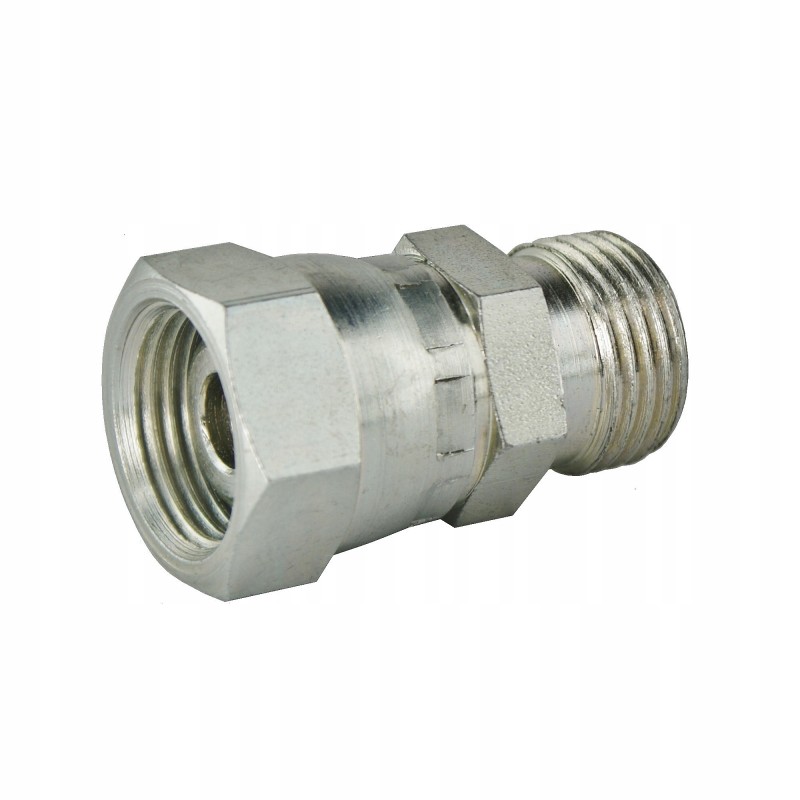

Straight connector ab g1 2 m22x1 5 hydrolider

INCH-METRIC HYDRAULIC CONNECTOR, STRAIGHT AB 1/2' - 22 Production:

Hydrolider, symbol: 1.60.01.116

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical clamping self-seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Nominal diameter of the passage: 10mm

Thread on one side: internal inch BSP 1/2'

Thread on the other side: external metric 22x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable, galvanized steel, corrosion-resistant
