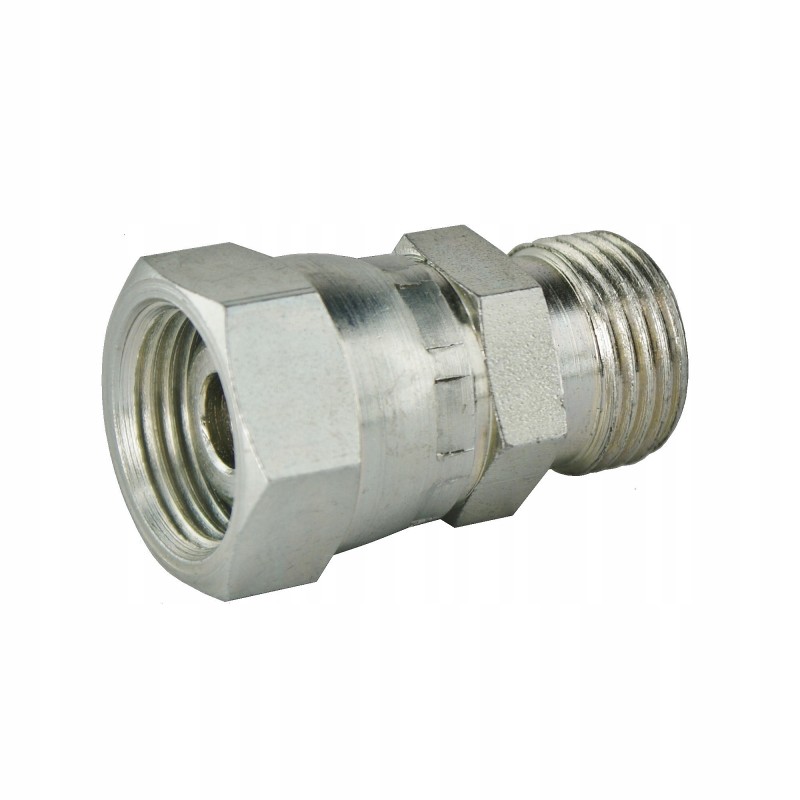

Straight connector ab g1 2 m18x1 5 hydrolider

STRAIGHT HYDRAULIC CONNECTOR AB 1/2 - 18 Production:

Hydrolider, symbol: 1.60.01.115

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self- clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Nominal diameter of the passage: 10mm

Thread on one side: internal inch BSP 1/2'

Thread on the other side: external metric 18x1.5

Material: weldable steel, galvanized, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable steel, galvanized, corrosion-resistant
