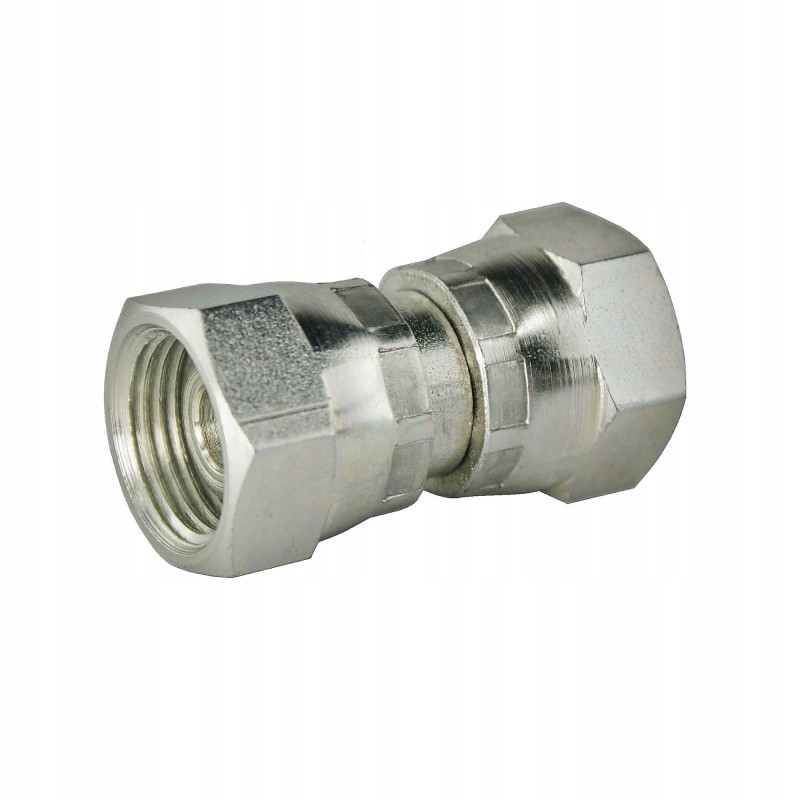

Straight connector AA M30x2 M30x2 hydrolider

STRAIGHT HYDRAULIC CONNECTOR AA 30/30 Production:

Hydrolider, symbol: 1.60.02.040

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Nominal diameter of the passage: 22mm

Thread on one side: internal metric 30x2

Thread on the other side: internal metric 30x2

Material: weldable, galvanized steel corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable, galvanized steel, corrosion-resistant
