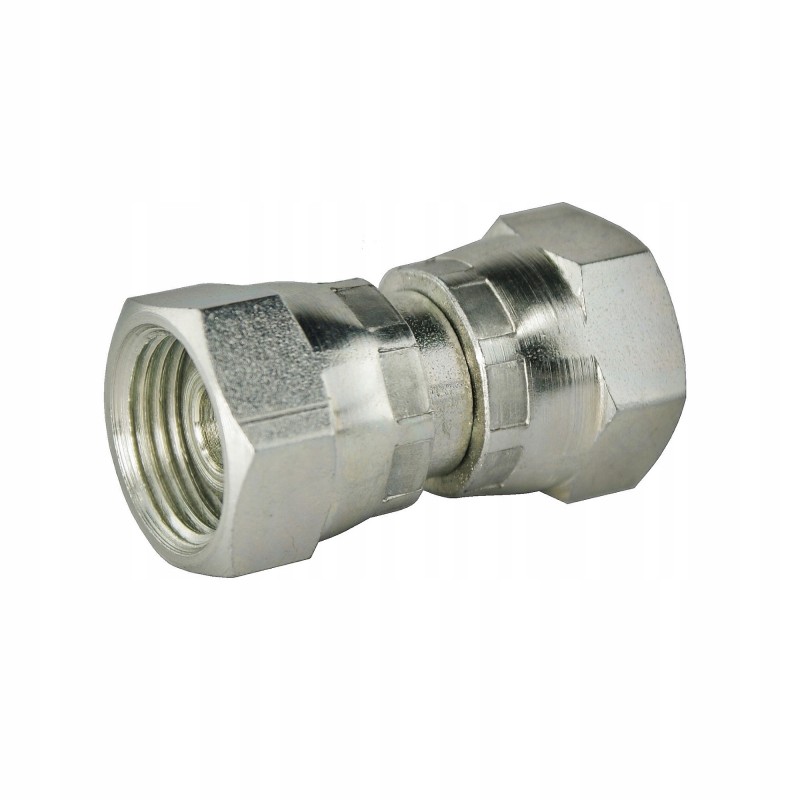

Straight connector aa m24x1 5 m24x1 5 hydrolider

STRAIGHT HYDRAULIC CONNECTOR AA 24/24 Production:

Hydrolider, symbol: 1.60.02.031

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Technical data:

Nominal diameter of the passage: 16mm

Thread on one side: internal metric 24x1.5

Thread on the other side: internal metric 24x1.5

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Material:

Weldable, galvanized, corrosion-resistant steel
