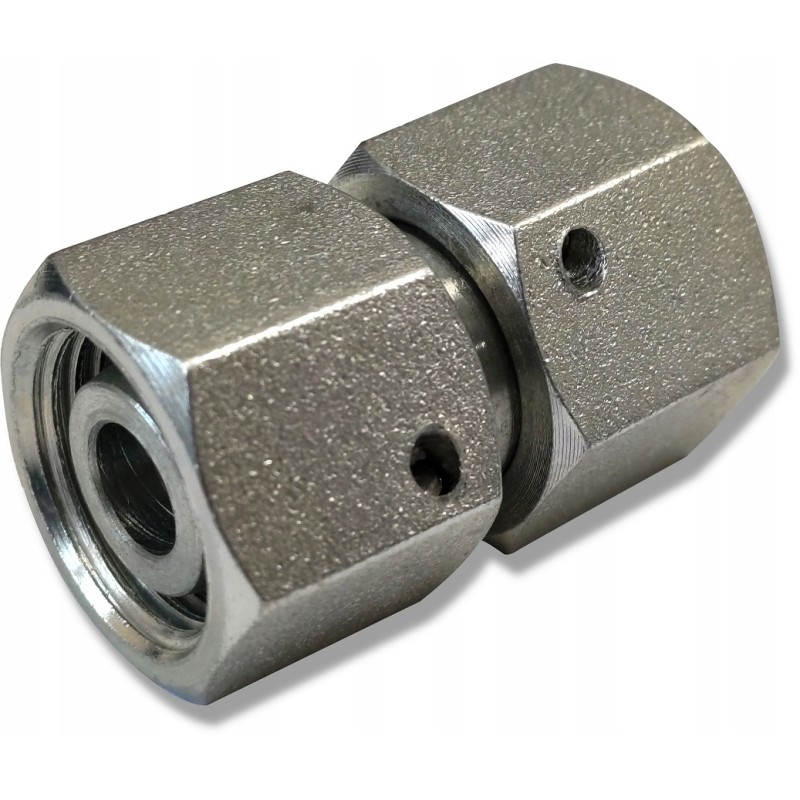

Straight connection aa connector m18x1 5 m18x1 5 12l

CONNECTION STRAIGHT JOINT M18x1.5 - M18x1.5 SKRAW-MET CODE: [1411] Metric hydraulic connector type AA - used in static hydraulic connections in which there is an internal thread on both sides, as well as for connecting any bodies with the flexible element of the system hydraulic.

It has seals on both sides. It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers , industrial machines and others.

Technical Specification: Thread on both sides: 2x internal metric thread M18x1.5

Nominal diameter of the passage: 7 mm

Outer diameter of the key: 22 mm

Total length of the connection: 38 mm

Operating pressure: 180bar

Max pressure: 230bar

Connection version: light

Material: Carbon steel - galvanized
