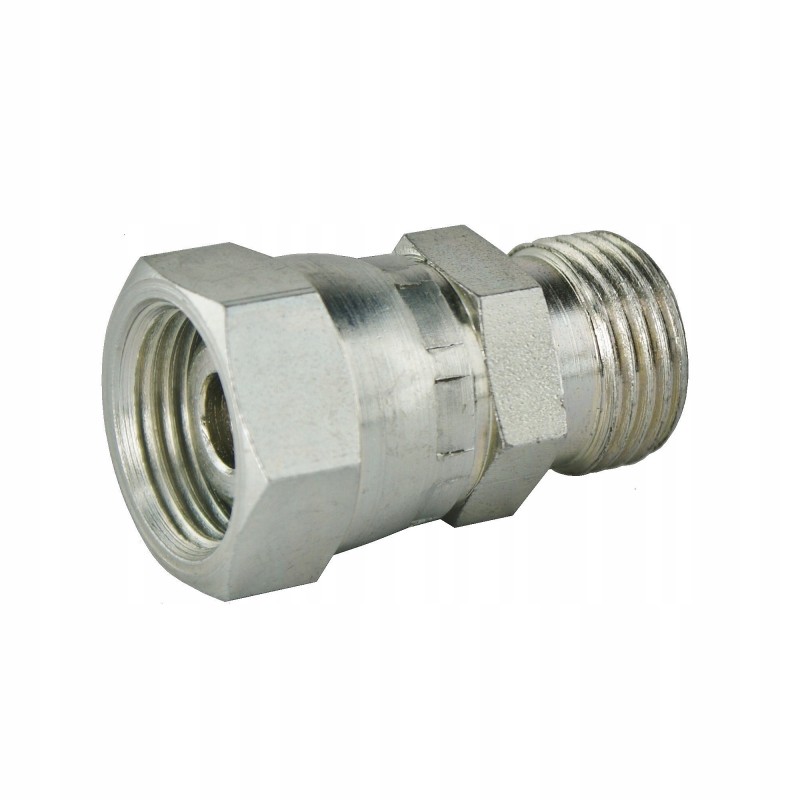

Straight connector ab m27x2 m27x2 hydrolider

STRAIGHT HYDRAULIC CONNECTOR AB 27/27 Production:

Hydrolider, symbol: 1.60.01.065

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. Connections that can be purchased at our other auctions are used for this purpose.

Helpful data:

M27x2 thread diameter measured with a caliper:

Outer diameter [mm]: 26.6 - 26.9

Inner diameter [mm]: 24.6 - 25, 0

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 16mm

Thread on one side: external metric 27x2

Thread on the other side: internal metric 27x2

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
