Straight connector ab m20x1 5 m22x1 5 hydrolider

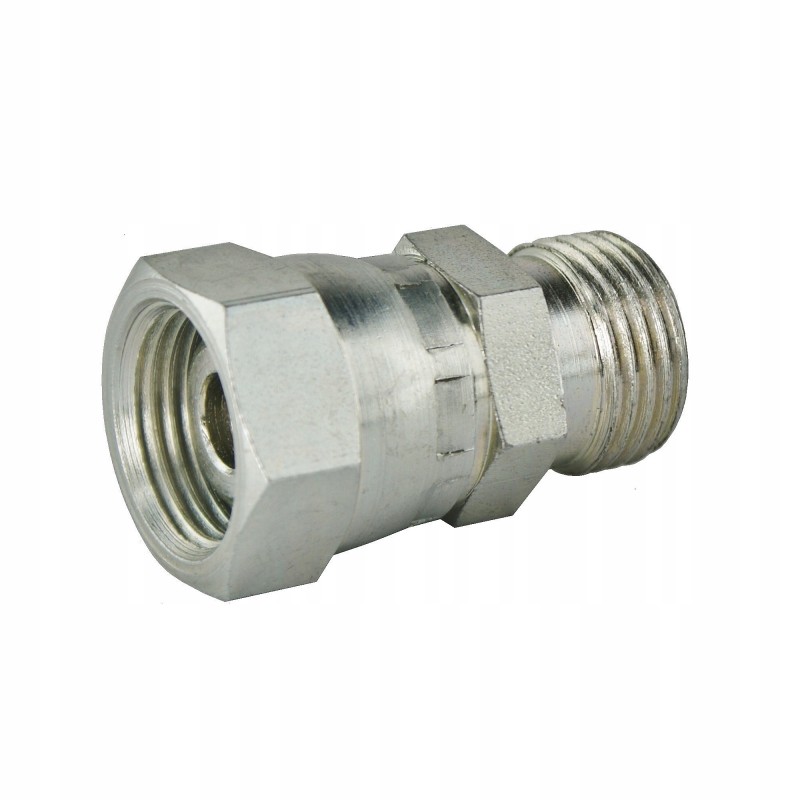

STRAIGHT HYDRAULIC CONNECTOR AB 20/22 Production:

Hydrolider, symbol: 1.60.01.045

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

Thread diameter M20x1.5 measured with a caliper:

Outer diameter [mm]: 19.6 - 19.9

Inner diameter [mm]: 18.2 - 18.6

Thread diameter M22x1.5 measured with a caliper:

Outer diameter [mm]: 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

Technical data:

Clamping cone angle: 24 ° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm

Thread on one side: internal metric 20x1.5

Thread on the other side: external metric 22x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
