Hydraulic connector reduction AB 20 18 straight

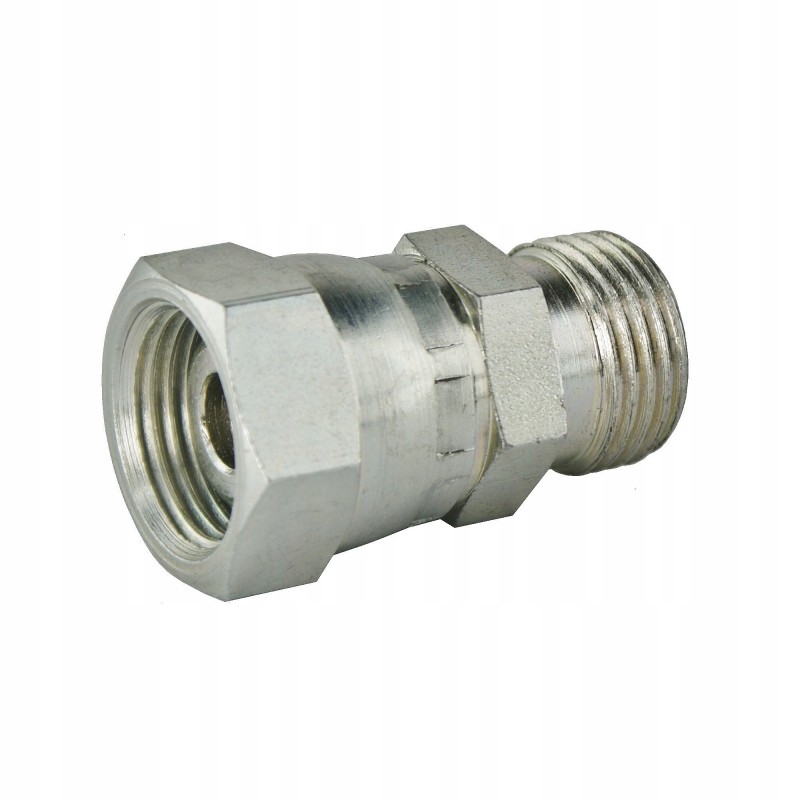

STRAIGHT HYDRAULIC CONNECTOR AB 20/18 Production:

Hydrolider, symbol: 1.60.01.039

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical clamping self-sealing when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

Thread diameter M20x1.5 measured with a caliper:

Outer diameter [mm]: 19.6 - 19.9

Inner diameter [mm]: 18.2 - 18.6

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

Technical data:

Clamping cone angle: 24 ° (typical for the Polish standard)

Nominal diameter of the passage: 10 mm

Thread on one side: internal metric 20x1.5

Thread on the other side: external metric 18x1.5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
