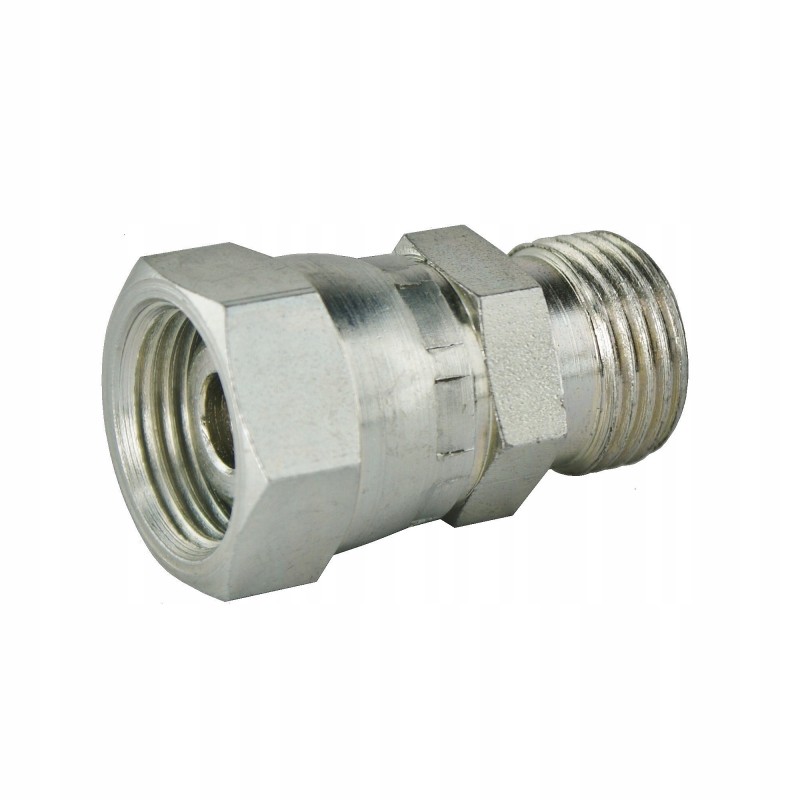

Straight connector ab m14x1 5 m14x1 5 hydrolider

STRAIGHT HYDRAULIC CONNECTOR AB 14/14 Production:

Hydrolider, symbol: 1.60.01.003

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Standardized connector, light version with conical self-clamping seal when tightening. Designed to connect two cables or to connect with other connectors with the same conical system.

It does not have a rubber seal or space for a gasket, it is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, there are connections that can be purchased at our other auctions.

Helpful data:

M14x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 13.6 - 13.9

Inner diameter [mm]: 12.2 - 12.6

Technical data:

Clamping cone angle: 24° (typical for the Polish standard)

Nominal bore diameter: 6mm

Thread on one side: external metric 14x1.5

Thread on the other side: internal metric 14x1. 5

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Material:

welded steel, galvanized, corrosion-resistant
