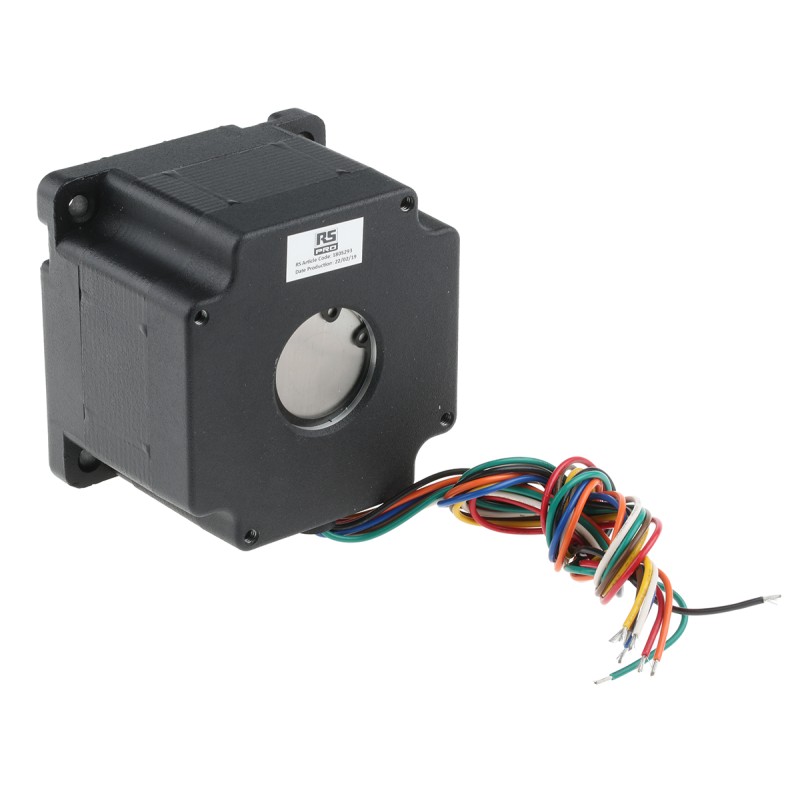

1 pcs - RS PRO Hybrid Stepper Motor, 2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm Torque, 1.65 V, 2.39 V, 3.42 V,
  • 1 pcs - RS PRO Hybrid Stepper Motor, 2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm Torque, 1.65 V, 2.39 V, 3.42 V,
  • 1 pcs - RS PRO Hybrid Stepper Motor, 2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm Torque, 1.65 V, 2.39 V, 3.42 V,
  • 1 pcs - RS PRO Hybrid Stepper Motor, 2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm Torque, 1.65 V, 2.39 V, 3.42 V,

1 pcs - RS PRO Hybrid Stepper Motor, 2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm Torque, 1.65 V, 2.39 V, 3.42 V,

Allparts-UK/15/R/180-5293
RS PRO
£417.86
Quantity
Out-of-Stock

Product Details
RS PRO
Allparts-UK/15/R/180-5293
RS PRO

Data sheet

Manufacturer
RS PRO
Current rating
3 A, 4.2 A, 5.9 A
Depth
65mm
Shaft length
30.23mm
A-Supplier
Allparts-UK-R
Supply Voltage
1.65 V, 2.39 V, 3.42 V
Shaft Diameter
12mm
Step Angle
1.8°
Holding Torque
2.6 (Unipolar) nm, 3.4 (Parallel) nm, 3.4 (Series) nm
Winding Arrangement
Parallel, Series, Unipolar
Number Of Wires
8
Stepper Motor Type
Hybrid
Frame Size
85.85 x 85.85mm
Resistance Per Phase
0.28 (Parallel) Ω, 0.57 (Unipolar) Ω, 1.14 (Series) Ω
