Power steering system C-360 round axle power steering pump drive from the crankshaft transverse cylinder mounted between the wheels MIZAR number: 66758
Power steering system C-360 round axle transverse cylinder drive from the shaftThe set is new, complete and ready for self-assembly.
In the case of tractors with TUR, due to their different designs, modifications are sometimes necessary.
Assembly involves removing the old parts and installing new parts from the set in their place.
There is no need to buy additional parts or permanently modify the tractor in any way.
Technical information: Fits tractors with a round axle
The pump drive from the shaft is mounted under cooler
The actuator extends on both sides and is mounted to the axle

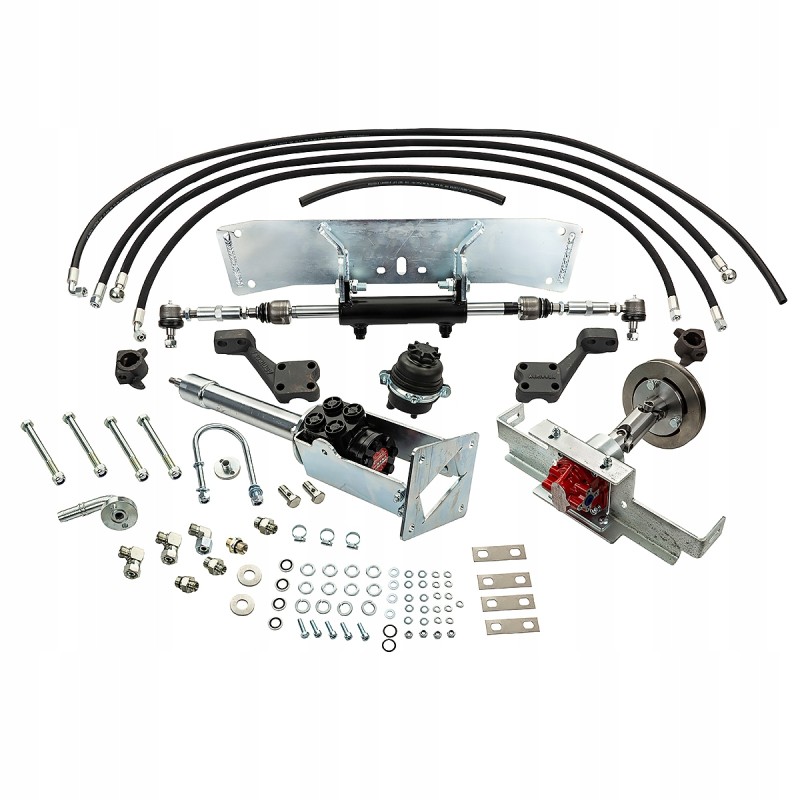

The set includes 32 elements: Orbitrol
Pump
Actuator
Tank
Column
Orbitrol bracket
Pulley
Pump complete drive
Mounting tank
Swivel levers (right and left)
Joints (right and left)
Connects (right and left)
Longitudinal joint (right and left)
Load nut (x6)
Eye bolt with washers (x2)
Actuator bracket
Stop (right and left)
Pump suction connector with a gasket
Pressed pump connector with a gasket
Set of straight orbitrol connections
Set of AB elbow connectors< p>
Cables from the orbitrol to the actuator (x2)
Cable from the orbitrol to the tank
Cable from the orbitrol to the pump
Cable from the tank to the pump
Screws, washers, etc.
MIZAR number: 66758
