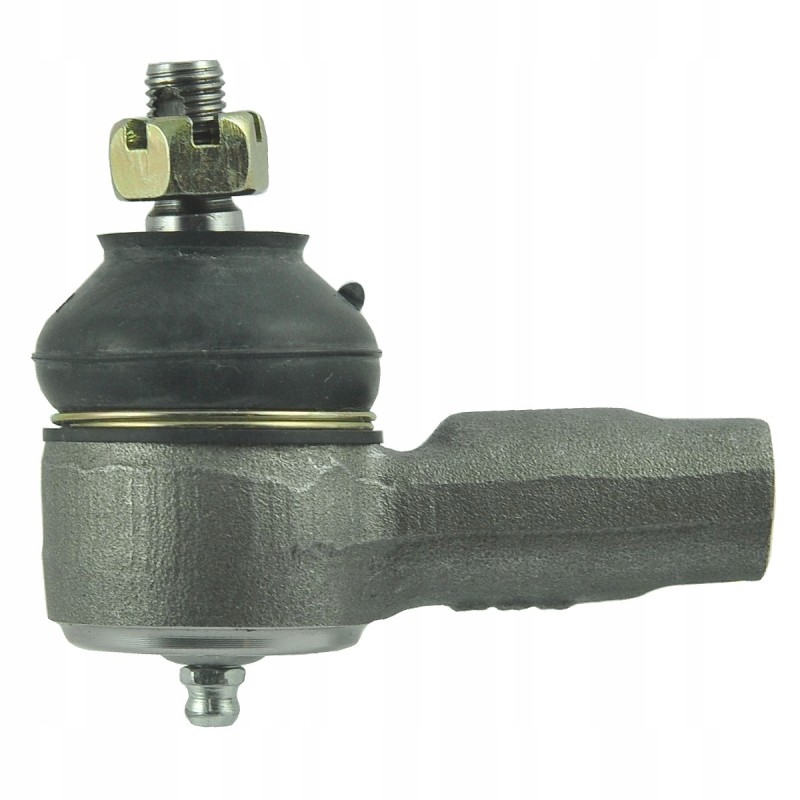

Right steering rod end of Kubota L1500

Traktor_com_pl offers: Tie rod end RIGHT Kubota L15004FARMER

Rod end with a total length of 84.50 mm and a height of 68 mm for Kubota tractors of the Kubota L1500, Kubota L2000 and other series

The tie rod end is the part of the steering system that connects the wheels to the steering gear. Correct installation of this element directly affects the driving angle of the wheels and, consequently, the driving characteristics of the vehicle itself. The most common visible signal that the steering rack needs to be replaced is looseness in the steering system or visible unnatural wear of the tires. Remember that good condition of tie rod ends affects driving safety and extends the durability of tires.

Condition: New

Production: Replacement

Parts: Steering system

Height (mm): 68

Total length (mm): 84.50

Cone height (mm): 16 / 34

Thread length(s) (mm): 18 / 36

Head diameter (mm): 40

Cone diameter (mm): 11.50 / 12.80

Thread: M13 x 1.5 / M10 x 1.25

Tractor models: Kubota L2000, Kubota L1500

Part number: 6-23-133-05

Dimensions endings:

total length: 84.50 mm,

head diameter: 40 mm,

thread length: 18 / 36 mm,

head height (see drawing): 68 mm,

cone height: 34 / 16 mm,

cone diameter (see drawing): 12.80 / 11.50 mm,

thread: M13 x 1.5 / M10 x 1.25,

part numbers: 6-23-133-05.

Tractor models:

Kubota :

Kubota L1500,

Kubota L2000.

The first signs of rod end wear are play in the steering wheel, steering wheel vibration, and delayed response of the steering wheels to slight steering movements. The wear and tear of the tie rod ends or their damage is often caused by other malfunctioning components or improper driving and operation of the tractor.
