Target forging dn6 1 2sn m16x1 5 x10 hydrolider

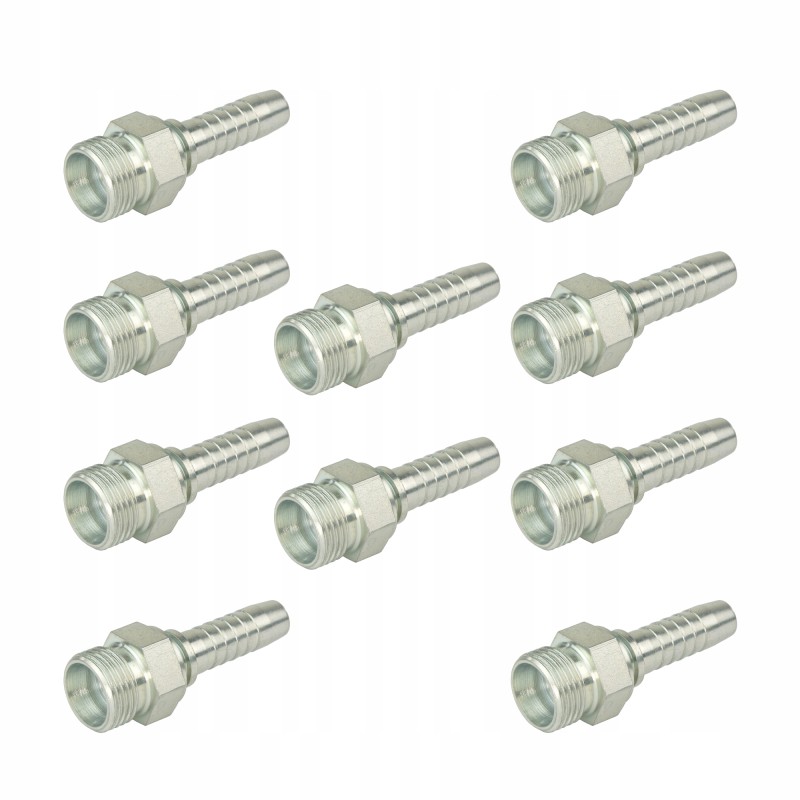

10 PCS STRAIGHT HYDRAULIC FITTING CEL M16x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN6 Production:

Hydrolider, symbol: 4.08.06.016

Application:

The ferrule is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN6 group with single and double braiding. Fits sleeves from the DN6 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with metric external thread 16x1.5, light version with a 24° cone. Made according to the standards: PN-65/M 73140, PN-65 /M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN6 1SN, DN6 2SN or other inner diameter 6mm
