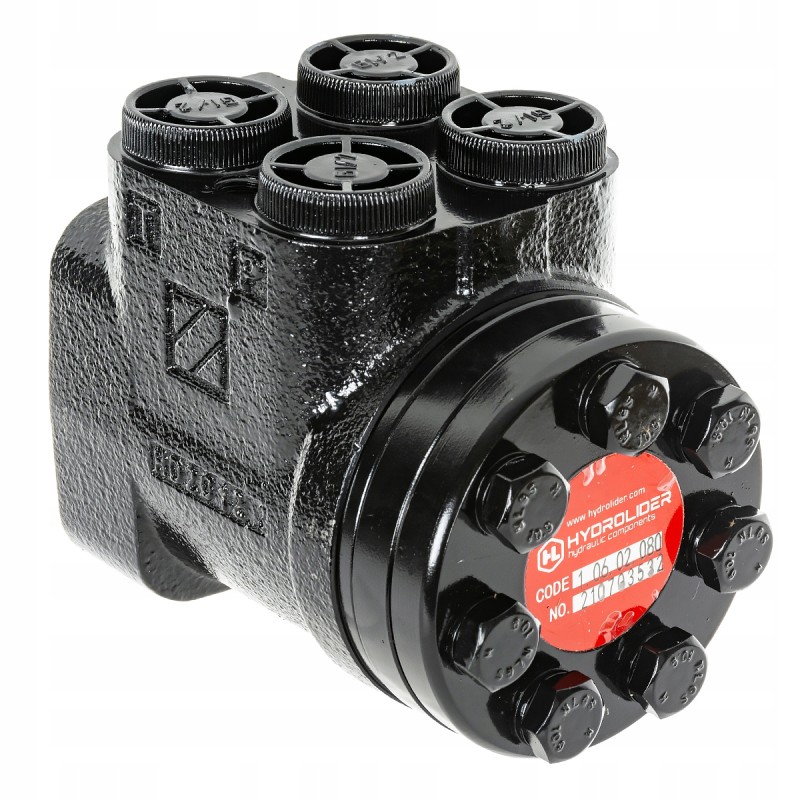

Orbitrol ospc 80 ls 150 1230 reinforced branded

Orbitrol OSPC 80 LS 150-1230 HYDROLIDER MIZAR number: 70386

Orbitrol OSPC 80 LS 150-1230 HYDROLIDER

☑️ Orbitrol 80 with the LS system (LOAD SENSING) while the steering wheel is standing, the flow the oil through the orbitrol is closed, the orbitrol then holds the pressure in the system.

☑️ The LS system gives a signal to the pump every time the steering wheel is moved.

Comparison numbers: OSPC-80-LS , OSPC80LS, 150-1230

Application: Designed for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines that have a power steering pump equipped with an LS sensor.

Technical information:

Connections: P, T, A, B internal threads 1/2' BSP

Steering column mounting: 4x screw M10 - 16mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 80cm3/rev

Recommended oil flow in the system: from 6 to 10L/min.

Length total: 132mm

Shaft mounting: 16/32-12-30° (SAE)

Orbitrol mounting dimensions diagonally: 82mm

Manufacturer: Hydrolider

MIZAR number: 70386
