Target forging dn16 1 2sn m26x1 5 x10 hydrolider

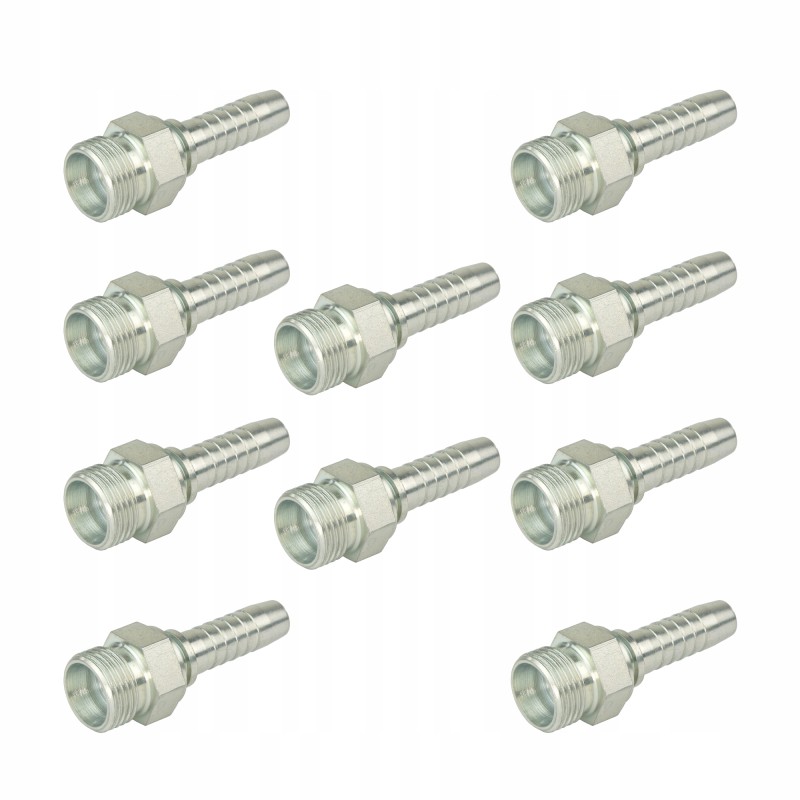

10 PCS STRAIGHT HYDRAULIC FITTING CEL M26x1.5 FOR HYDRAULIC HOSE 1SN / 2SN DN16 Production:

Hydrolider, symbol: 4.08.16.026

Application:

The ferrule is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN16 group with single and double braiding. Fits sleeves from the DN16 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with metric external thread 26x1.5, light version with a 24° cone. Made according to the standards: PN-65/M 73140, PN-65 /M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN16 1SN, DN16 2SN or other inner diameter 16mm
