Target forging dn19 1 2sn m30x2 x10 hydrolider

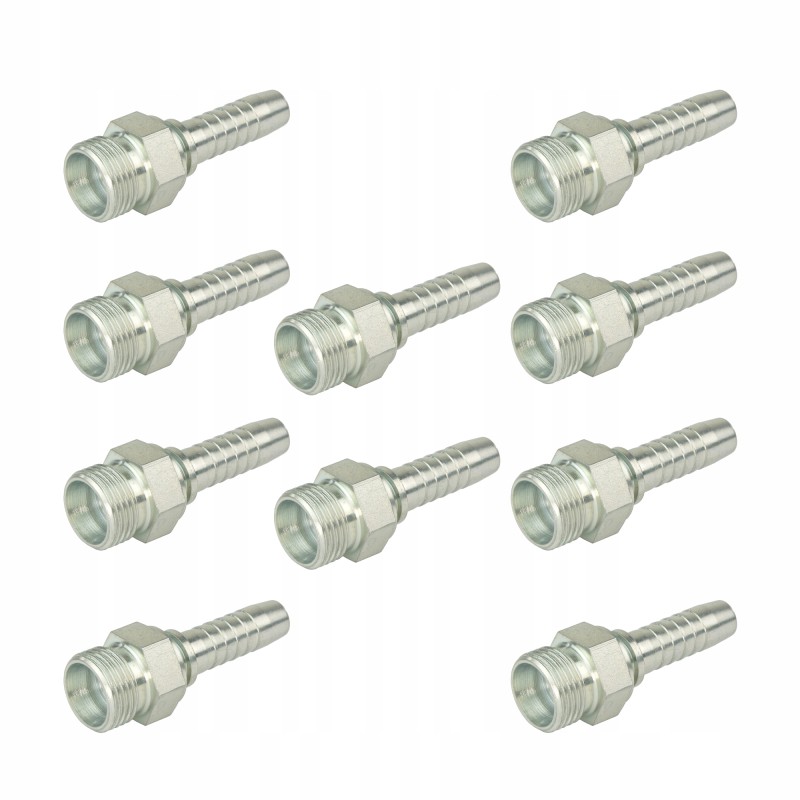

10 PCS STRAIGHT HYDRAULIC FITTING CEL M30x2 FOR HYDRAULIC HOSE 1SN / 2SN DN19 (20) Production:

Hydrolider, symbol: 4.08.19.031

Application:

The fitting is used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN19 (20) group with single and double braiding. Fits sleeves from the DN19 (20) group with the marking 1SN and 2SN.

Technical data:

Straight fitting, tip with 30x2 external metric thread, light version with a 24° cone. Made according to the following standards: PN-65/M 73140, PN- 65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables:

Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN19 (20) 1SN, DN19 (20) 2SN or other with an internal diameter of 19-20mm
