Power steering ursus c 360 355 complete

POWER STEERING C-360 SHAFT DRIVE MIZAR number: 20980

POWER STEERING USUS C-360 SHAFT DRIVE Power steering kit complete

Application: Ursus C-360 C-355

The set is new, complete, ready for self-assembly.

In the case of tractors with TUR, due to their different designs, modifications are sometimes necessary.

The set is intended for for tractors operating in difficult conditions.

The pump drive is taken from the crankshaft via a cardan, and not from the timing as in other types of power steering. This solution ensures minimal wear of the timing gears, long operational period and very smooth and easy tractor control even in very difficult field conditions.

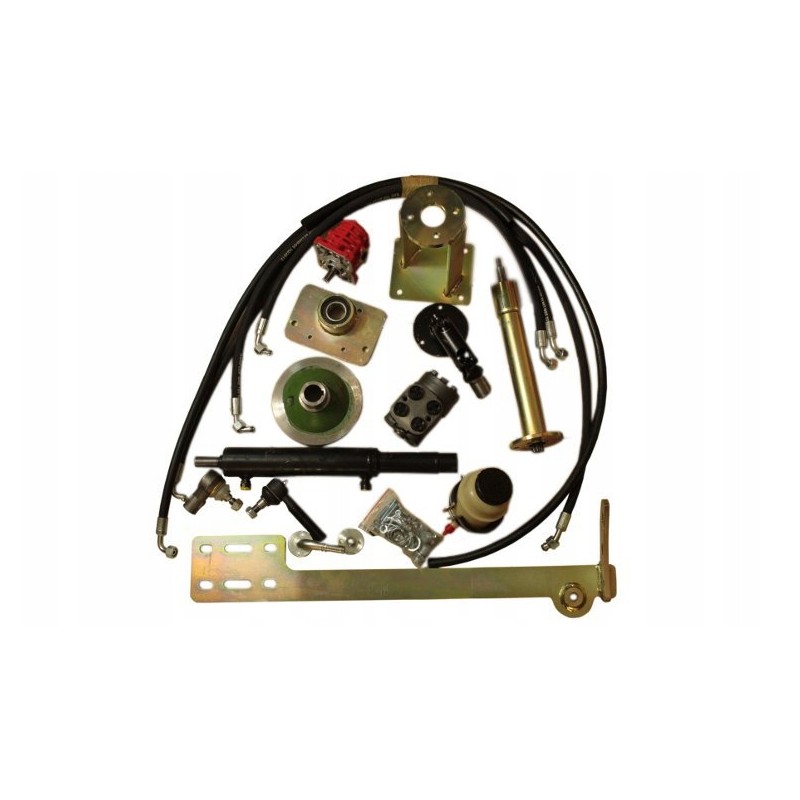

The set includes:

1. OIL TANK < p>

2.POWER POWER HYDRAULIC PUMP

3.ORBITROL BRACKET

4.POWER POWER HYDRAULIC CYLINDER

5.STEERING COLUMN

6. PUMP DRIVE CARDIAN SHAFT

7. POWER POWER PULLEY C-360

8. ELBOW PUMP CONNECTORS (PRESSURE) and STRAIGHT (SUCTION)

9.BEARING UCFL 206

10.ORBITROL 100

11.BALL JOINT WITH INTERNAL THREAD

12.PIPE KK 2000 M18X1.5

13. CABLE K '0' 2500 M18X1.5

14. CABLE KK 500 M18X1.5

15. CABLE KK 710 M18X1.5

16.ORING 18X3 (2 pieces)

17.CONNECTOR BB 1/2''/M18X1.5 (4 pieces)

18.CONNECTION E G3/8 M18X1.5 (2 pieces)

19. RUBBER HOSE

20. BAND 16/25

21. BAND 12/20

22. SET OF SCREWS FOR INSTALLATION

The support is available with two types of drive pulleys:

- pulley with thread (for flinger)

- pulley without thread (for sealant) )

When placing an order, please take into account what type of wheel you need.

MIZAR number: 20980
