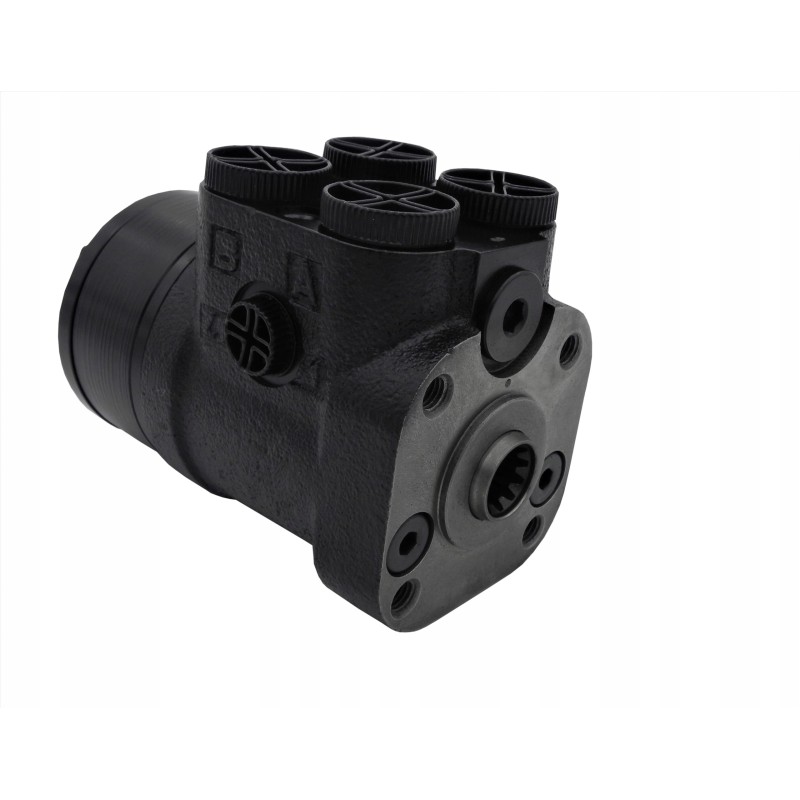

Orbitrol ospc 400 ls 150 1240

ORBITROL OSPC 400 LS Comparison numbers of other manufacturers:

OSPC-400-LS, OSPC400LS, 150-1240

Application:

It is widely used in steering systems in machines industrial and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 400 LS intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines in which the pump is equipped with an LS sensor.

Advantages of our orbitrols:

a special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

we also provide full technical support in selecting the appropriate orbitrol and during installation.

steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Technical data:

Orbitrol 400 with the LS (LOAD SENSING) system, when the steering wheel is standing, the oil flow through the orbitrol is closed, the orbitrol then holds the pressure in the system. The LS system sends a signal to the pump every time the steering wheel is moved.

Connections: P, T, A, B internal threads [BSP]: 1/2'

LS connection: internal thread [BSP] 1/4'

Steering column mounting: 4x M10 screw - 16mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 400cm3/rev

Recommended oil flow in the system: from 35 to 45L/min.

Material:

cast iron

Drawing from full dimensions (photo):

Our offer includes most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.

We invite you to cooperate
