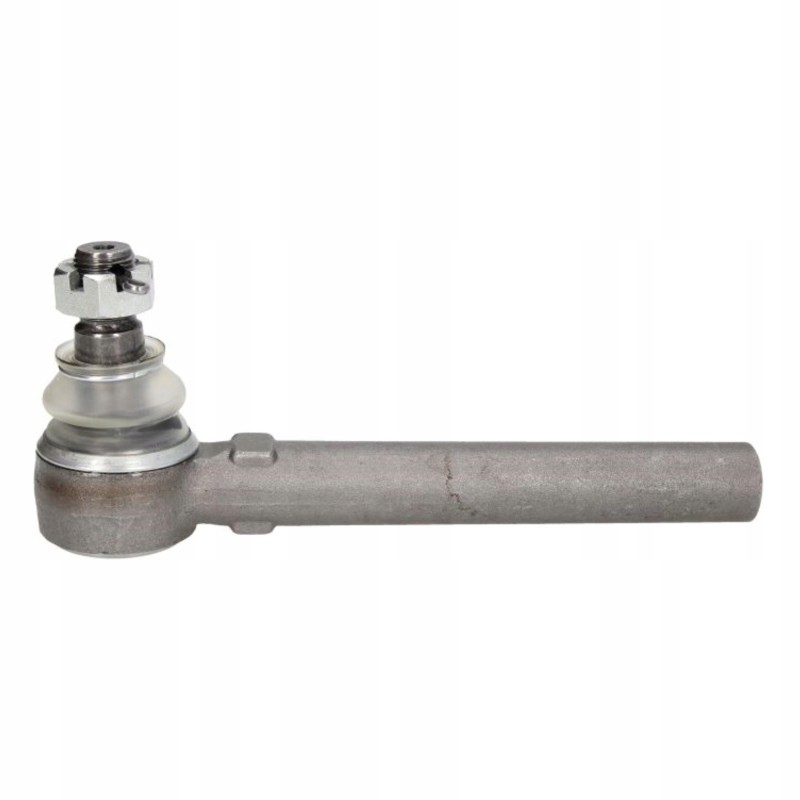

Rod end massey ferguson 3426336m1 m18x1 5

Tie rod end Massey Ferguson Landini Renault 3426336M1 6000103260Fits to:

Massey Ferguson:

200: 240

200 (Brasil-South Africa): 283F

300: 353, 535LX, 353S, 363, 363LX, 363S, 373, 373LS, 373S, 377, 383, 383LX, 383S, 387, 393, 393L X, 393S, 393TLX, 397, 397T

1000: 1007

3000: 3050, 360, 3065

3600: 3610, 3615, 3625, 3630, 3635, 3640, 3645, 3650

Landini:

60 Series: 68CV, 5860, 6060, 6860, 7860, 7860HC, 8860, 8860HC, 9060

60 NG Series: 5860, 6860, 7860, 8860

60 Tier2 Series: 6865, 7860, 8860

Series 70: 78CV, 88CV, 5870, 6070, 6870, 7870, 8870

80 Series: 6880, 6880VM, 7880, 7880VM, 8880, 8880HC, 9080, 9080HC, 9880, 9880HC

Blizzard: 50, 60, 65, 75, 85, 95

Ghibli: 80 , 90

Ghibli Tier2: 85, 95

GlobalFarm: 90, 95, 100, 105

Mythos: 90

PowerFarm Meccanico Tier 2: 60, 75, 85, 95

PowerFarm Meccanico Tier 3: 75, 80, 90, 100

PowerFarm Meccanico RPS Tier 2: 75, 85, 95

PowerFarm Meccanico RPS Tier 3: 80, 90, 100

Vision: 80, 90

Vision Tier2: 85, 95

Renault:

Celtis: 426 RA/RC/RX, 436 RA/RC/RX, 446 RA/RC/RX, 456 RA/RC/RX

Ceres: 65, 70, 75, 85, 95, 310X, 316, 320X, 325X, 326, 330X, 335X, 336, 340X, 345X, 346, 355

Cergos: 330, 335, 340, 345, 350, 355

Ergos: 85, 90, 95, 100, 105, 110, 436, 446, 456, 466

McCormick:

C-Max: C85Max

John Deere:

5000: 5200, 5300, 5400, 5500

5003: 5103 (North America) (4WD), 5203 (North America) (4WD), 5303 (North America) (4WD), 5403 (North America), 5603

5005: 5105 , 5205, 5415, 5425HC

5010: 5210 (North America), 5310 (North America), 5410 (North America), 5510 (North America)

5015: 5615, 5615 (Turkey), 5615HC, 5715, 5715 (Turkey) , 5715HC

5020: 5220, 5320, 5420, 5520

5025: 5525, 5625, 5625HC, 5725HC

New Holland:

TM: TM150 (Brasil)

Dimensions:

Min. cone diameter: 20 mm

Max. cone diameter: 22.2 mm

Thread diameter, cone side: M18x1.5

Cone length: 22 mm

Working length: 200 mm

Outer diameter of the rod: 26 mm

Thread diameter of the rod side : M18x1.5

Thread direction: Right

Catalog numbers: 3426336M1, 3426336R1, 3426366M92, 3658001M91, 6000103260, RE204878, HM3426336, S41711, VA350001, VPJ3158

Manufacturer: ST-R
