Sospb250ongp orbitrol gopart sospb on 250 cm3 rpm

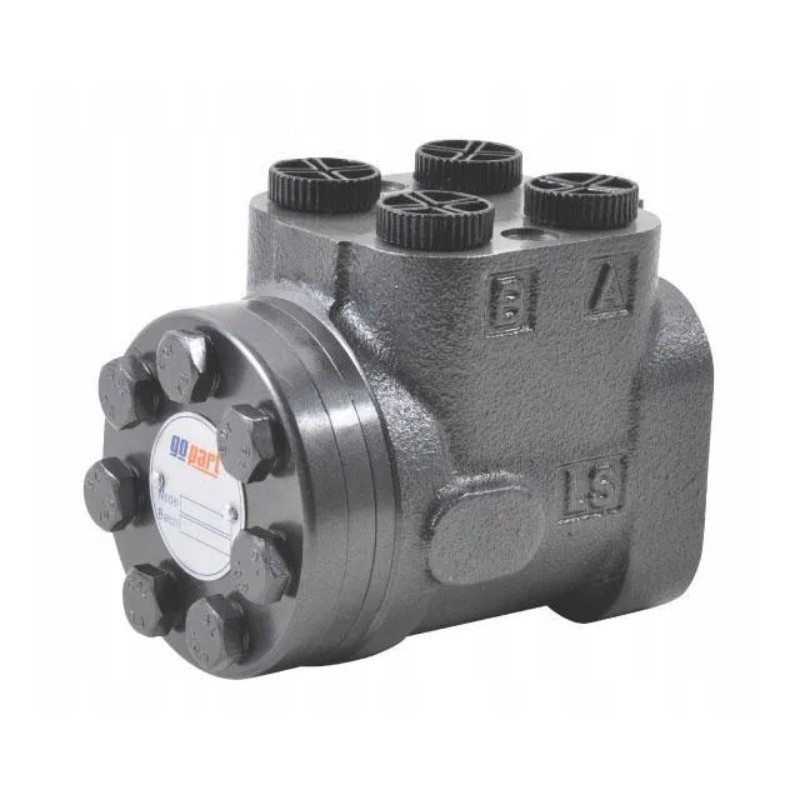

SOSPB250ONGP Orbitrol gopart SOSPB-ON 250 cm3/rev Part number: SOSPB250ONGP

EAN: 8716106064311

Unit: Piece

Specifications: Identical design to the famous steering orbitrols manufacturers

Application: Vehicles and ships with fully hydraulic steering systems

Properties: Compact constructionVersion: open-center non reaction

Technical information: "O" means " open system"In the neutral position, oil flows from port "P" (pump) to port "T" (tank). "N" means "non reaction"External forces acting on the wheels are not transmitted to the steering system.

Benefits: Favorable price-performance ratio High safety and comfort Simple system structure Low noise emission Low required steering torque

Danfoss number: 150-0052

Performance: 250 cm³/rev< p>

Type: ON

Connection pressure T max.: 25 BAR

Working pressure max.: 160 BAR

Pressure settings L, R : 280 BAR

Type Load Sensing: n/a

Required min. flow: 25 l/min

Thread diameter - connection A: 1/2 inch

Thread type - connection A: BSP

LDimension L1: 161 mm

Material: Cast iron

Material: cast iron
