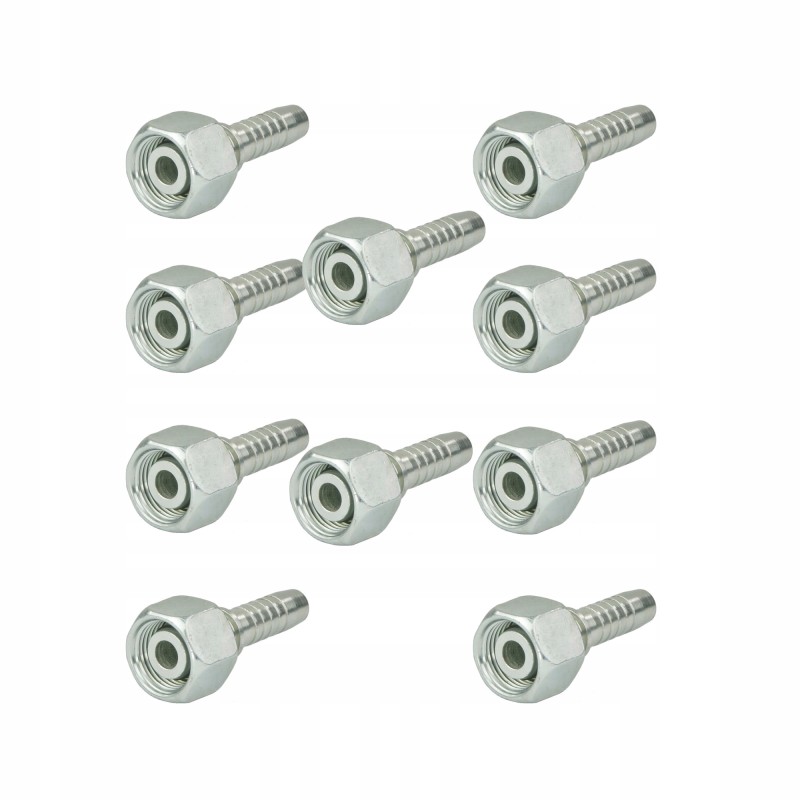

Straight neck clamp m18x15 for DN10 cable, 10 pcs

10 PCS STRAIGHT HYDRAULIC FITTINGS DKOL M18x1.10 FOR HYDRAULIC HOSE 1SN / 2SN DN10 Production:

Hydrolider, symbol: 4.05.10.018.10

Application:

Used fitting in the production of hydraulic hoses, it is widely used in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN10 group with single and double braiding. Fits sleeves from the DN10 group with the marking 1SN and 2SN.

Technical data:

Straight fitting, metric thread tip 18x1.10, light version with a 24° cone and an additional sealing ring.

Made according to the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902.

Standard coating of our elements for the production of cables: Electrolytic protective coating Alkaline ZN - minimum thickness 8µm Type A chromate passivation, chromium (VI) free in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN10 1SN, DN10 2SN or other with an internal diameter of 10mm
