Power steering Ursus C 360 round axle with timing belt

Power steering system C-360 round axle with wheel timing MIZAR number: 66757

Power steering system C-360 round axle with wheel timing

* Power steering system C-360, round axle, reinforced power steering pump drive from the timing belt, transverse cylinder mounted between the wheels

* The main advantage of the set is that the installation of the bracket with orbitrol eliminates any play previously occurring in the steering system, and the steering wheel turns very smoothly and comfortably, literally with one finger.

* The set is new, complete, ready for self-assembly.

* Assembly involves removing the old parts from the set and installing new ones in their place. There is no need to buy additional parts, and there is no need to permanently modify the tractor in any way. In the case of tractors with TUR, due to their different designs, modifications are sometimes necessary.

* The set is intended for tractors operating in difficult conditions.

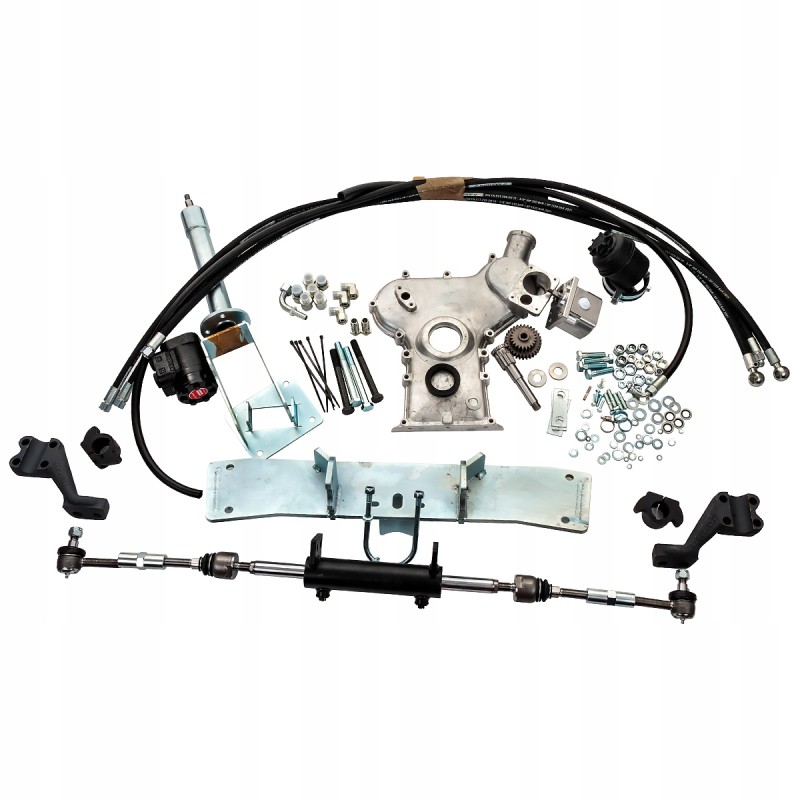

The support includes:

1. Orbitrol

2. Pump with connections

3. Actuator

4. Tank

5. Column

6. Orbitrol bracket

7. Camshaft

8. Mate gear for the pump shaft

9. Large gear for the camshaft< p>

10. Timing cover

11. Seal

12. Tank mounting

13. Right steering knuckle lever

14. Left knuckle lever

15. Right joint

16. Left joint

17. Right link

18. Left link< p>

19. Right longitudinal joint

20. Left longitudinal joint

21. Lock nut (x6)

22. Eyebolt with washers (x2 )

23. Actuator support

24. Right stop

25. Left stop

26. Set of straight orbitrol connections

27. Set of AB 27 elbow connectors

28. Cable from the orbitrol to the actuator

29. Cable from the orbitrol to the actuator

30. Cable from orbitrol to the tank

31. Cable from the orbitrol to the pump

32. Cable from the tank to the pump

33. Standards - screws, washers, etc.

MIZAR number: 66757
