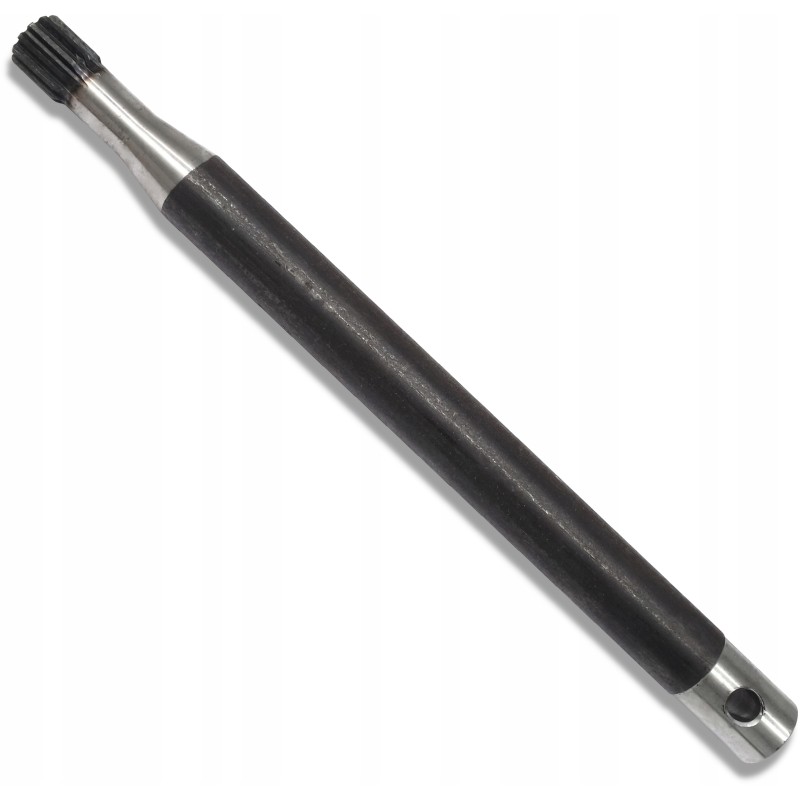

Steering shaft column for orbitrol c 385 dl 320mm

LONG ORBITROL SHAFT, LENGTH 320 mm SKRAW-MET CODE: [1347] Application: Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The shaft fits all types of orbitrols (ON, CN, LS).

Used in C-385 agricultural machines.

Technical data: Number of cutters on the shaft end: 12

Width of the milled tip: 20 mm

Total length of the shaft: 320 mm

Width of the smooth tip: 25 mm

Length of the smooth tip: 33 mm

Hole diameter : Φ10 mm
