Dkr 90 forging dn12 1 2sn g3 8 hydrolider

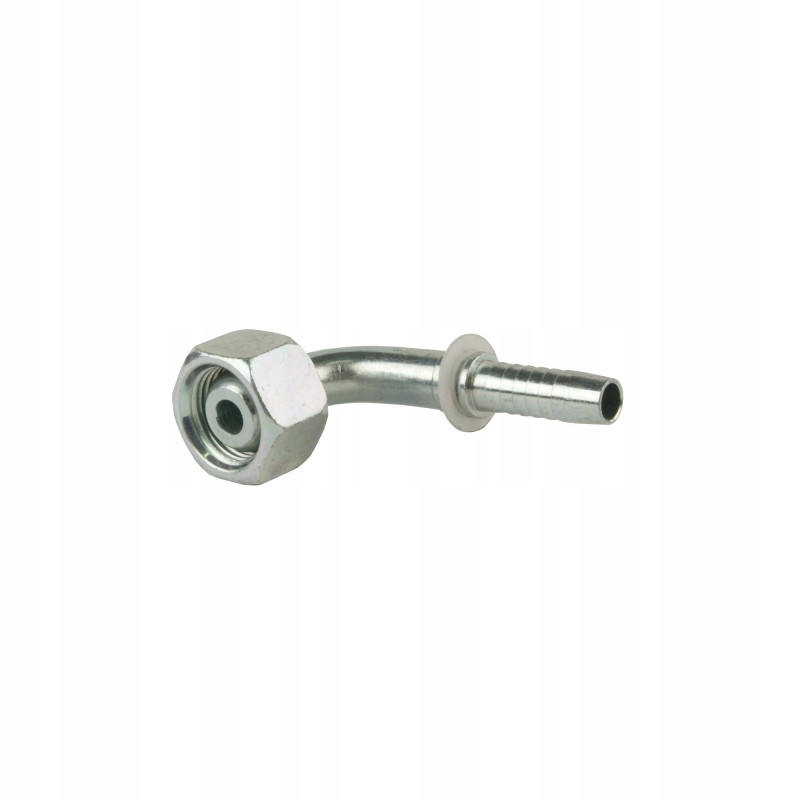

ANGLE HYDRAULIC FITTING DKR-90 3/8' FOR HYDRAULIC HOSE 1SN / 2SN DN12 Production:

Hydrolider, symbol: 4.10.12.010

Application:

Used fitting in the production of hydraulic hoses, it is widely used in agriculture, industry and forestry. Designed to be attached to all hoses from our offer: Agriflex, Semperit, Stomil from the DN12 (13) group with single and double braiding. Fits sleeves from the DN12 (12) group with the marking 1SN and 2SN.

Technical data:

90° angle fitting, inch thread end [BSP] 3/8', light version with a 60° cone. Manufactured in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm Type A chromate passivation, chromium-free ( VI) in accordance with the DIN EN 15205 standard. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life. Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN12 (13) 1SN, DN12 (13) 2SN or other with an internal diameter of 12-13mm.

Made in Poland for Agricola Hydraulic Component
