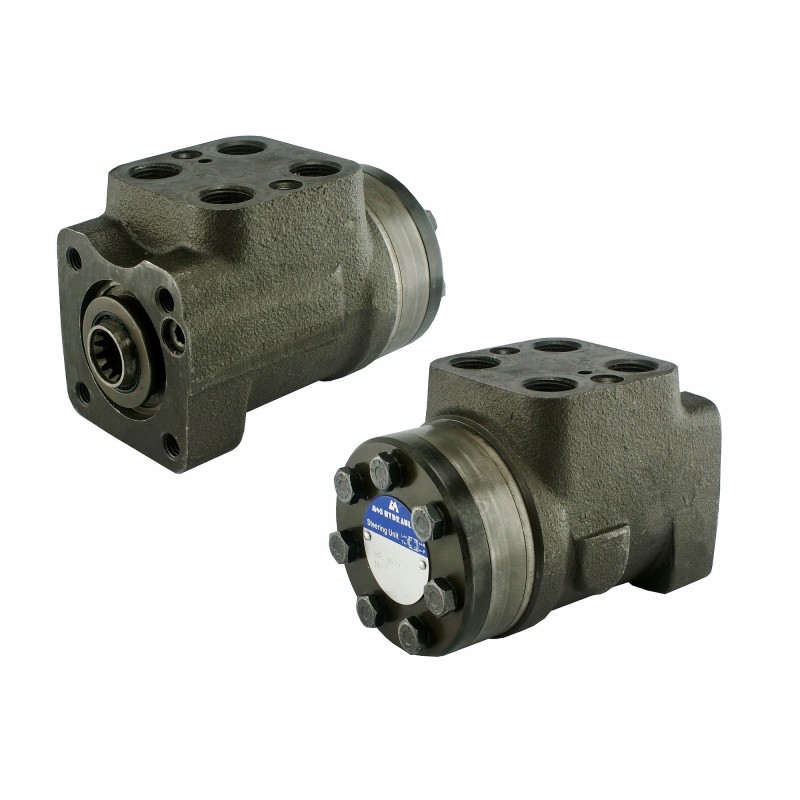

Orbitrol ospb 160 cn ms hku160 7

ORBITROL OSPB 160 CNProduction:

Original product of the M+S Hydraulic brand, symbol: HKU160/7

Comparison numbers of other manufacturers:

OSPB-160-CN, OSPB160CN, 150-0128, HKU160/7

Application:

It is widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPB 160 CN intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines, etc.

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 160 with the CN (CLOSED NORMALLY) system, while the steering wheel is standing, the oil flow through the orbitrol is blocked, the orbitrol holds the pressure in the system

Connections: P, T, L, R internal threads [BSP]: 1/2'

V threaded holes : 2x M10x1 - depth: 16mm

Threaded holes B: 4x M10 - depth: 18mm

Geometric volume: 158cm3/rev

Recommended oil flow in the system : 12-18L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without shaking the steering wheel and, most importantly, very light and smooth control even in very loaded vehicles.

Each orbitrol is sent together with connection instructions hydraulic hoses, we also provide full technical support in the selection of the appropriate orbitrol and installation.

Produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPB CN orbitrol (photo):
