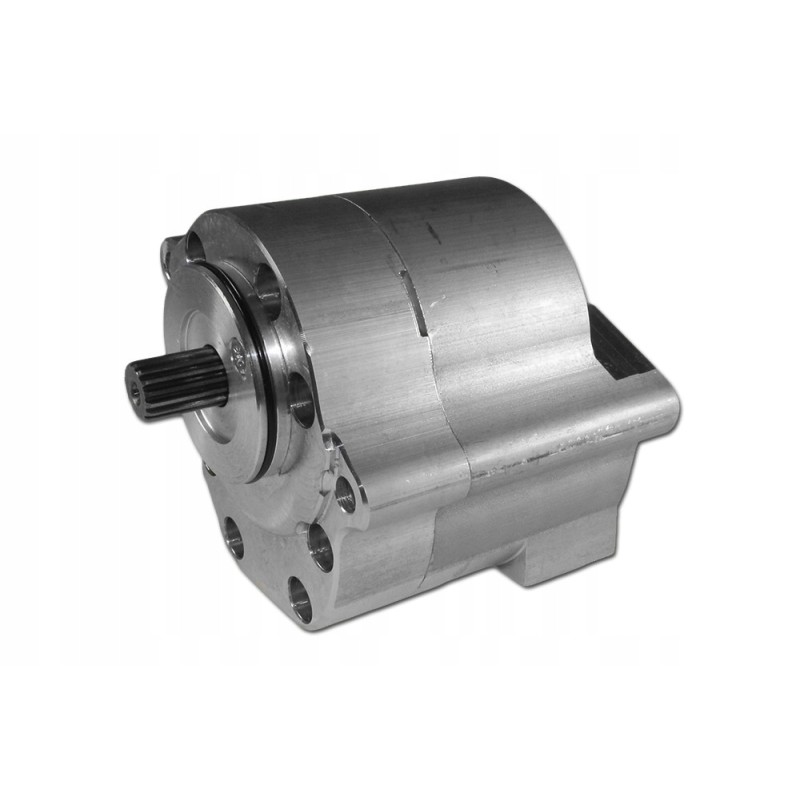

Power steering pump c 385 reinforced

High-quality, reinforced hydraulic pump

TECHNICAL PARAMETERS

Geometric volume: 17 cm3/rpm

Capacity: 27 l/min (1600 rpm)

Rotational speed: 800 - 2500 rpm

Nominal pressure: 10 MPa

Maximum pressure: 12 MPa

Country of origin: Poland< p>

Manufacturer: Tuchola Hylmet

Application: C-385

TRACTOR TYPES: 8011, 8045,

8111,8145, 8211

Hydraulic pumps with increased efficiency

and pressure are intended for tractors

where additional devices are installed

hydraulically controlled, e.g. tur, cyclops, etc.

Increased efficiency and higher pressure

will increase the efficiency of your device.

Pumps Hylmet is a kind of phenomenon on the Polish market. In the era of cheap, eastern substitutes, the products of this manufacturer are distinguished by their solid workmanship and, above all, the uniqueness of the structure, which was designed specifically to work in difficult conditions encountered by agricultural or forestry equipment. Hylmet pumps have unique solutions, unheard of in old structures from the socialist era. . These are the company's original ideas, most of which have patents. The parameters of pumps manufactured by Hylmet are calculated in real operating conditions and not, as in the case of other companies, only in laboratory conditions.

If you want to forget about replacing the pump for a long time and at the same time enjoy high power and efficiency, choose this product. This is the best price-quality ratio, which results from the following characteristics:

- high-quality castings that are not 'slimmed' like most substitutes. Thanks to this, it is possible to achieve high efficiency without the risk of damaging the pump,

- all parts made on CNC machines, thanks to which a manufacturing accuracy of one hundredth of a millimeter is achieved,

- gears made of highest quality steel, hardened, ground and polished. This treatment ensures maximum durability and at the same time ensures quiet operation,

- modern plain bearings. The bearing journals of the gear wheels are characterized by a large diameter - while achieving a high load capacity.

- the sliding inserts are covered with a specially selected bearing alloy, which ensures the required durability and a low coefficient of friction.

PZS-ZCT-21L
