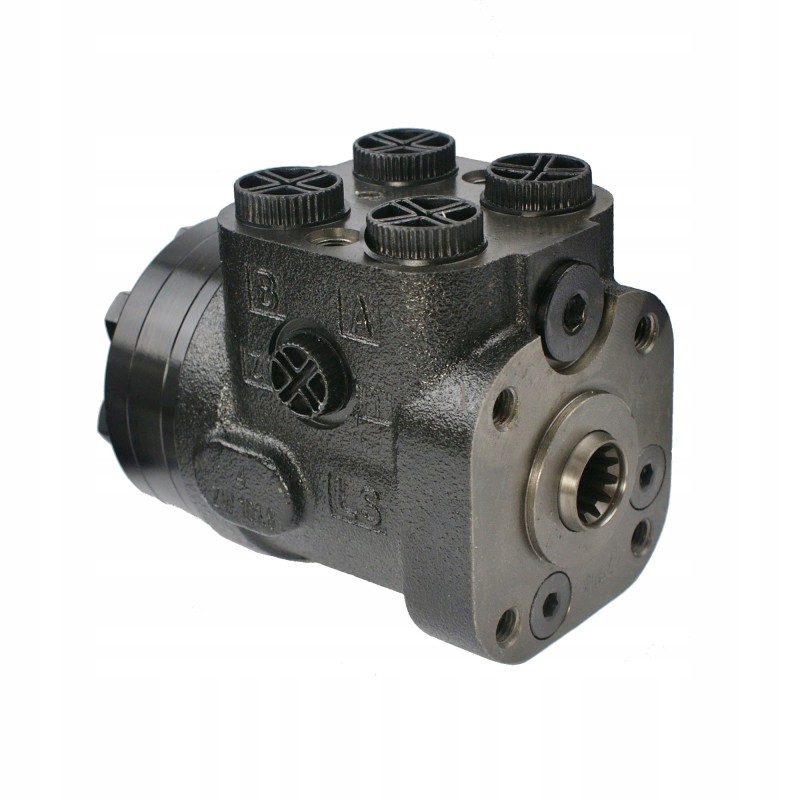

Orbitrol ospc 250 ls 150 1235

ORBITROL OSPC 250 LSProduction:

Original product of the Hydrolider brand, symbol: 1.06.02.250

Comparative numbers of other manufacturers:

OSPC-250-LS, OSPC250LS, 150 -1235

Application:

It is widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 250 LS intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines in which the pump is equipped with an LS sensor.

DEAR CUSTOMER, READ THIS BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise device that is important for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision prevents proper driving and operation of the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 250 with the LS (LOAD SENSING) system, while the steering wheel is standing, the oil flow through the orbitrol is closed, the orbitrol then holds the pressure in the system. The LS system sends a signal to the pump every time the steering wheel is moved.

Connections: P, T, A, B internal threads [BSP]: 1/2'

LS connection: internal thread [BSP] 1/4'

Steering column mounting: 4x M10 screw - 16mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 250cm3/rev

Recommended oil flow in the system: from 20 to 30L/min.

Material: cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols produced by Hydrolider:

The special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth control even in heavily loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation.

Produced in Europe, coming from a reliable source, has a two-year warranty , proven product from a reliable manufacturer.

Steering even in the event of a tractor or pump failure, this function is very useful in emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC LS orbitrol (photo. ):
