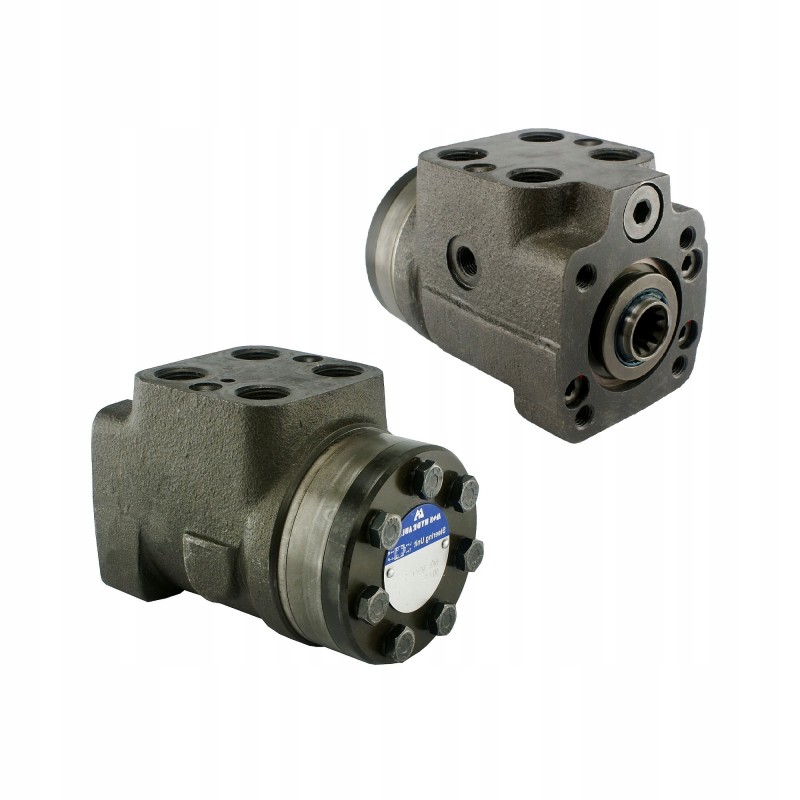

Orbitrol ospc 100 ls ms hkus100 5t

ORBITROL OSPC 100 LSProduction:

Original product of the M+S Hydraulic brand, symbol: HKUS100/5T

Comparison numbers of other manufacturers:

OSPC-100-LS, OSPC100LS, 150-1231, 1/06/05/100

Application:

It is widely used in steering systems in industrial machines and vehicles used in transport, agriculture, horticulture, forestry, construction and industry.

Orbitrol OSPC 100 LS intended for hydraulic control of the steering system in agricultural tractors, forklifts, excavators, combines and construction machines in which the pump is equipped with an LS sensor.

DEAR CUSTOMER, READ BEFORE YOU BUY ORBITROL:

Orbitrol is a very precise and important device for traffic safety. Unfortunately, there are many cheap products from China on the market that look the same at first glance, but their poor precision makes it impossible to drive properly and work with the tractor. We do not recommend the cheapest orbitrols, from unreliable sources from sellers who have no experience in selling this type of devices.

Technical data:

Orbitrol 100 with the LS (LOAD SENSING) system, while the steering wheel is standing, the oil flow through the orbitrol is closed, the orbitrol then holds the pressure in the system. The LS system sends a signal to the pump every time the steering wheel is moved.

Connections: P, T, L, R internal threads [BSP]: 1/2'

LS connection: internal thread [BSP] 1/4'

Threaded holes V: 2x M10x1 - depth: 16mm

Threaded holes B: 4x M10 - depth: 18mm

Valve setting: overflow 160bar, shock 240bar

Geometric volume: 100cm3/rev

Recommended oil flow in the system: from 8 to 12L/min.

Material : cast iron

Drawing with full dimensions (photo):

Advantages of orbitrols produced by M+S Hydraulic:

A special, reinforced and more precisely made structure ensures perfect operation without leaks, without jerking the steering wheel and, most importantly, very light and smooth steering even in heavily loaded vehicles.

Each orbitrol is sent together with instructions for connecting hydraulic lines, we also provide full technical support in selecting the appropriate orbitrol and during installation .

Produced in Europe, from a reliable source, has a two-year warranty, proven product from a reliable manufacturer.

Directed even in the event of a tractor or pump failure, this function is very useful in situations emergency situations, e.g. when towing.

Hydraulic diagram of the OSPC LS orbitrol (photo):
